Pressure Electrofusion

  • Power Supply: 230 V - 50/60 Hz
  • Welding Output Voltage: 8 - 48 Volts
  • Connectors: 90° Universal adapters, 4-4.7mm
  • Barcode Scanner Included
  • Manual Scraper Included
  • Transport Case
  • Welds All Brands Of Pressure Electrofusion Fittings
Custom Option

Pressure Electrofusion - Elektra S

Show full data

Variants: 1

#CodeFitting RangeMax Output AmpsDuty Cycle Amps (60%)Generator kVAWelder Dimensions (mm)Carry Case Dimensions (mm)Weight (kg)
1 9690670020mm - 200mm70 (230V)453.5 - 4246 (L) x 390 (W) x 240 (H)290 (L) x 445 (W) x 295 (H)8.4
Product Drawing
Fitting Range : 20mm - 200mm
Max Output Amps : 70 (230V)
Duty Cycle Amps (60%) : 45
Generator kVA : 3.5 - 4
Welder Dimensions (mm) : 246 (L) x 390 (W) x 240 (H)
Carry Case Dimensions (mm) : 290 (L) x 445 (W) x 295 (H)
Weight (kg) : 8.4
Custom Option

Pressure Electrofusion - Elektra M

Show full data

Variants: 1

#CodeFitting RangeMax Output AmpsDuty Cycle Amps (60%)Generator kVAWelder Dimensions (mm)Carry Case Dimensions (mm)Weight (kg)
1 9690657420mm - 315mm100 (230V)605.5 - 6246 (L) x 390 (W) x 240 (H)290 (L) x 445 (W) x 295 (H)9.2
Product Drawing
Fitting Range : 20mm - 315mm
Max Output Amps : 100 (230V)
Duty Cycle Amps (60%) : 60
Generator kVA : 5.5 - 6
Welder Dimensions (mm) : 246 (L) x 390 (W) x 240 (H)
Carry Case Dimensions (mm) : 290 (L) x 445 (W) x 295 (H)
Weight (kg) : 9.2
Custom Option

Pressure Electrofusion - Elektra XL

Show full data

Variants: 1

#CodeFitting RangeMax Output AmpsDuty Cycle Amps (60%)Generator kVAWelder Dimensions (mm)Carry Case Dimensions (mm)Weight (kg)
1 9690657520mm - 1600mm120 (230V)956.5 - 7246 (L) x 390 (W) x 240 (H)290 (L) x 445 (W) x 295 (H)9.4
Product Drawing
Fitting Range : 20mm - 1600mm
Max Output Amps : 120 (230V)
Duty Cycle Amps (60%) : 95
Generator kVA : 6.5 - 7
Welder Dimensions (mm) : 246 (L) x 390 (W) x 240 (H)
Carry Case Dimensions (mm) : 290 (L) x 445 (W) x 295 (H)
Weight (kg) : 9.4
Custom Option

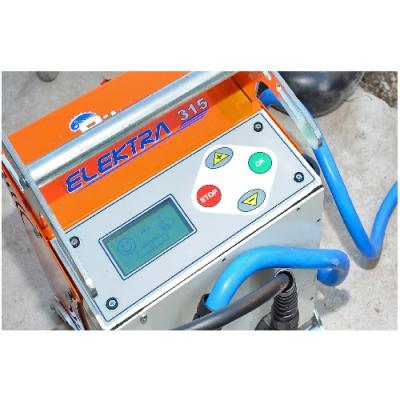

Pressure Electrofusion - Elektra 315

Show full data

Variants: 1

#CodeFitting RangeMax Output AmpsDuty Cycle Amps (60%)Generator kVAWelder Dimensions (mm)Carry Case Dimensions (mm)Weight (kg)
1 9690612020mm - 315mm100 (230V)605.5 - 6263 (L) x 240 (W) x 300 (H)405 (L) x 285 (W) x 340 (H)16
Product Drawing
Fitting Range : 20mm - 315mm
Max Output Amps : 100 (230V)
Duty Cycle Amps (60%) : 60
Generator kVA : 5.5 - 6
Welder Dimensions (mm) : 263 (L) x 240 (W) x 300 (H)
Carry Case Dimensions (mm) : 405 (L) x 285 (W) x 340 (H)
Weight (kg) : 16
Custom Option

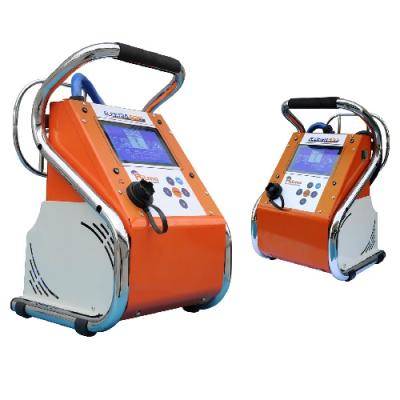

Pressure Electrofusion - Elektra 500

Show full data

Variants: 1

#CodeFitting RangeMax Output AmpsDuty Cycle Amps (60%)Generator kVAWelder Dimensions (mm)Carry Case Dimensions (mm)Weight (kg)
1 9690637020mm - 500mm120 (230V)705.5 - 6255 (L) x 270 (W) x 385 (H)410 (L) x 290 (W) x 485 (H)18
Product Drawing
Fitting Range : 20mm - 500mm
Max Output Amps : 120 (230V)
Duty Cycle Amps (60%) : 70
Generator kVA : 5.5 - 6
Welder Dimensions (mm) : 255 (L) x 270 (W) x 385 (H)
Carry Case Dimensions (mm) : 410 (L) x 290 (W) x 485 (H)
Weight (kg) : 18
Custom Option

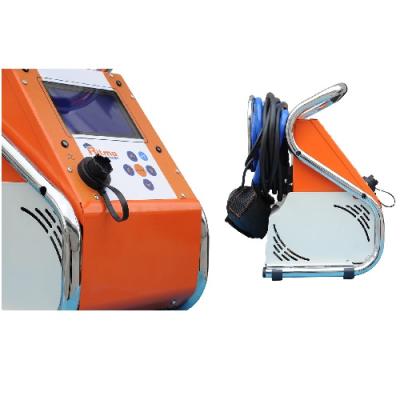

Pressure Electrofusion - Elektra 1000

Show full data

Variants: 1

#CodeFitting RangeMax Output AmpsDuty Cycle Amps (60%)Generator kVAWelder Dimensions (mm)Carry Case Dimensions (mm)Weight (kg)
1 9690640020mm - 1600mm120 (230V)906.5 - 7255 (L) x 270 (W) x 385 (H)410 (L) x 290 (W) x 485 (H)20
Product Drawing
Fitting Range : 20mm - 1600mm
Max Output Amps : 120 (230V)
Duty Cycle Amps (60%) : 90
Generator kVA : 6.5 - 7
Welder Dimensions (mm) : 255 (L) x 270 (W) x 385 (H)
Carry Case Dimensions (mm) : 410 (L) x 290 (W) x 485 (H)
Weight (kg) : 20
Custom Option

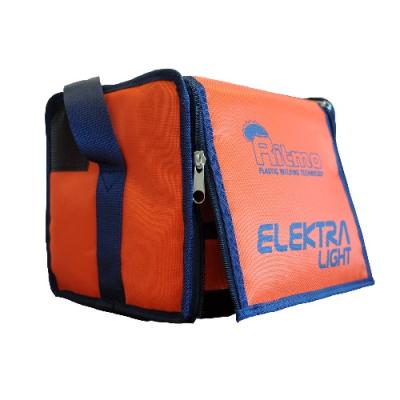

Pressure Electrofusion - Elektra light

Show full data

Variants: 1

#CodeFitting RangeMax Output AmpsDuty Cycle Amps (60%)Generator kVAWelder Dimensions (mm)Carry Case Dimensions (mm)Weight (kg)
1 9690606320mm - 160mm60 (230V)233.5 - 4200 (L) x 250 (W) x 210 (H)260 (L) x 260 (W) x 260 (H)7
Product Drawing
Fitting Range : 20mm - 160mm
Max Output Amps : 60 (230V)
Duty Cycle Amps (60%) : 23
Generator kVA : 3.5 - 4
Welder Dimensions (mm) : 200 (L) x 250 (W) x 210 (H)
Carry Case Dimensions (mm) : 260 (L) x 260 (W) x 260 (H)
Weight (kg) : 7
