Uni Directional

  • For potable water, waste water and slurry applications
  • Lugged Flange
  • Uni—directional
  • Pressure rating:10 BAR
  • Design and manufacture to MSS SP-81
  • Face to Face to MSS SP-81
  • Flange dimensions to AS2129
  • Test and Inspect to MSS SP-81
  • Shell Test: 1.5 MPa
Uni Directional

Uni Directional - Metal Seat - 316 STAINLESS STEEL

Show full data

Variants: 19

#CodeDN (mm)D1 (mm)L (mm)n-M (mm)No BoltsFlange PatternWeight (kg)
1 KGVSM050-D/E5011448M164TABLE D/E10

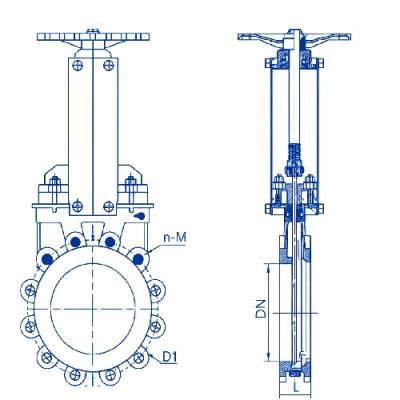

Product Drawing
DN (mm) : 50
D1 (mm) : 114
L (mm) : 48
n-M (mm) : M16
No Bolts : 4
Flange Pattern : TABLE D/E
Weight (kg) : 10
2 KGVSM080-D/E8014651M164TABLE D/E14.2
Product Drawing
DN (mm) : 80
D1 (mm) : 146
L (mm) : 51
n-M (mm) : M16
No Bolts : 4
Flange Pattern : TABLE D/E
Weight (kg) : 14.2
3 KGVSM100-D10017851M168TABLE D17.5
Product Drawing
DN (mm) : 100
D1 (mm) : 178
L (mm) : 51
n-M (mm) : M16
No Bolts : 8
Flange Pattern : TABLE D
Weight (kg) : 17.5
4 KGVSM100-E10017851M168TABLE E17.5
Product Drawing
DN (mm) : 100
D1 (mm) : 178
L (mm) : 51
n-M (mm) : M16
No Bolts : 8
Flange Pattern : TABLE E
Weight (kg) : 17.5
5 KGVSM125-D/E12521057M168TABLE D/E
Product Drawing
DN (mm) : 125
D1 (mm) : 210
L (mm) : 57
n-M (mm) : M16
No Bolts : 8
Flange Pattern : TABLE D/E
Weight (kg) :
6 KGVSM150-D15023557M208TABLE D26.8
Product Drawing
DN (mm) : 150
D1 (mm) : 235
L (mm) : 57
n-M (mm) : M20
No Bolts : 8
Flange Pattern : TABLE D
Weight (kg) : 26.8
7 KGVSM150-E15023557M208TABLE E26.8
Product Drawing
DN (mm) : 150
D1 (mm) : 235
L (mm) : 57
n-M (mm) : M20
No Bolts : 8
Flange Pattern : TABLE E
Weight (kg) : 26.8
8 KGVSM200-D20029270M208TABLE D38.2
Product Drawing
DN (mm) : 200
D1 (mm) : 292
L (mm) : 70
n-M (mm) : M20
No Bolts : 8
Flange Pattern : TABLE D
Weight (kg) : 38.2
9 KGVSM200-E20029270M208TABLE E38.2
Product Drawing
DN (mm) : 200
D1 (mm) : 292
L (mm) : 70
n-M (mm) : M20
No Bolts : 8
Flange Pattern : TABLE E
Weight (kg) : 38.2
10 KGVSM250-D25035670M2012TABLE D56
Product Drawing
DN (mm) : 250
D1 (mm) : 356
L (mm) : 70
n-M (mm) : M20
No Bolts : 12
Flange Pattern : TABLE D
Weight (kg) : 56
11 KGVSM250-E25035670M2012TABLE E56
Product Drawing
DN (mm) : 250
D1 (mm) : 356
L (mm) : 70
n-M (mm) : M20
No Bolts : 12
Flange Pattern : TABLE E
Weight (kg) : 56
12 KGVSM300-D30040676M2412TABLE D77
Product Drawing
DN (mm) : 300
D1 (mm) : 406
L (mm) : 76
n-M (mm) : M24
No Bolts : 12
Flange Pattern : TABLE D
Weight (kg) : 77
13 KGVSM300-E30040676M2412TABLE E77
Product Drawing
DN (mm) : 300
D1 (mm) : 406
L (mm) : 76
n-M (mm) : M24
No Bolts : 12
Flange Pattern : TABLE E
Weight (kg) : 77
14 KGVSM350-D/E35047076M2412TABLE D/E104
Product Drawing
DN (mm) : 350
D1 (mm) : 470
L (mm) : 76
n-M (mm) : M24
No Bolts : 12
Flange Pattern : TABLE D/E
Weight (kg) : 104
15 KGVSM400-D/E400TABLE D/E
Product Drawing
DN (mm) : 400
D1 (mm) :
L (mm) :
n-M (mm) :
No Bolts :
Flange Pattern : TABLE D/E
Weight (kg) :
16 KGVSM450-D/E450TABLE D/E
Product Drawing
DN (mm) : 450
D1 (mm) :
L (mm) :
n-M (mm) :
No Bolts :
Flange Pattern : TABLE D/E
Weight (kg) :
17 KGVSM500-D/E500TABLE D/E
Product Drawing
DN (mm) : 500
D1 (mm) :
L (mm) :
n-M (mm) :
No Bolts :
Flange Pattern : TABLE D/E
Weight (kg) :
18 KGVSM600-D600TABLE D
Product Drawing
DN (mm) : 600
D1 (mm) :
L (mm) :
n-M (mm) :
No Bolts :
Flange Pattern : TABLE D
Weight (kg) :
19 KGVSM600-E600TABLE E
Product Drawing
DN (mm) : 600
D1 (mm) :
L (mm) :
n-M (mm) :
No Bolts :
Flange Pattern : TABLE E
Weight (kg) :
Uni Directional

Uni Directional - NBR Seat - 316 STAINLESS STEEL

Show full data

Variants: 15

#CodeDN (mm)D1 (mm)L (mm)n-M (mm)No BoltsFlange PatternWeight (kg)
1 KGVSRN050-D/E5011448M164TABLE D/E10
Product Drawing
DN (mm) : 50
D1 (mm) : 114
L (mm) : 48
n-M (mm) : M16
No Bolts : 4
Flange Pattern : TABLE D/E
Weight (kg) : 10
2 KGVSRN080-D/E8014651M164TABLE D/E14.2
Product Drawing
DN (mm) : 80
D1 (mm) : 146
L (mm) : 51
n-M (mm) : M16
No Bolts : 4
Flange Pattern : TABLE D/E
Weight (kg) : 14.2
3 KGVSRN100-D10017851M168TABLE D17.5
Product Drawing
DN (mm) : 100
D1 (mm) : 178
L (mm) : 51
n-M (mm) : M16
No Bolts : 8
Flange Pattern : TABLE D
Weight (kg) : 17.5
4 KGVSRN100-E10017851M168TABLE E17.5
Product Drawing
DN (mm) : 100
D1 (mm) : 178
L (mm) : 51
n-M (mm) : M16
No Bolts : 8
Flange Pattern : TABLE E
Weight (kg) : 17.5
5 KGVSRN125-D/E12521057M168TABLE D/E
Product Drawing
DN (mm) : 125
D1 (mm) : 210
L (mm) : 57
n-M (mm) : M16
No Bolts : 8
Flange Pattern : TABLE D/E
Weight (kg) :
6 KGVSRN150-D15023557M208TABLE D26.8
Product Drawing
DN (mm) : 150
D1 (mm) : 235
L (mm) : 57
n-M (mm) : M20
No Bolts : 8
Flange Pattern : TABLE D
Weight (kg) : 26.8
7 KGVSRN150-E15023557M208TABLE E26.8
Product Drawing
DN (mm) : 150
D1 (mm) : 235
L (mm) : 57
n-M (mm) : M20
No Bolts : 8
Flange Pattern : TABLE E
Weight (kg) : 26.8
8 KGVSRN200-D20029270M208TABLE D38.2
Product Drawing
DN (mm) : 200
D1 (mm) : 292
L (mm) : 70
n-M (mm) : M20
No Bolts : 8
Flange Pattern : TABLE D
Weight (kg) : 38.2
9 KGVSRN200-E20029270M208TABLE E38.2
Product Drawing
DN (mm) : 200
D1 (mm) : 292
L (mm) : 70
n-M (mm) : M20
No Bolts : 8
Flange Pattern : TABLE E
Weight (kg) : 38.2
10 KGVSRN250-D25035670M2012TABLE D56
Product Drawing
DN (mm) : 250
D1 (mm) : 356
L (mm) : 70
n-M (mm) : M20
No Bolts : 12
Flange Pattern : TABLE D
Weight (kg) : 56
11 KGVSRN250-E25035670M2012TABLE E56
Product Drawing
DN (mm) : 250
D1 (mm) : 356
L (mm) : 70
n-M (mm) : M20
No Bolts : 12
Flange Pattern : TABLE E
Weight (kg) : 56
12 KGVSRN300-D30040676M2412TABLE D77
Product Drawing
DN (mm) : 300
D1 (mm) : 406
L (mm) : 76
n-M (mm) : M24
No Bolts : 12
Flange Pattern : TABLE D
Weight (kg) : 77
13 KGVSRN300-E30040676M2412TABLE E77
Product Drawing
DN (mm) : 300
D1 (mm) : 406
L (mm) : 76
n-M (mm) : M24
No Bolts : 12
Flange Pattern : TABLE E
Weight (kg) : 77
14 KGVSRN350-D/E35047076M2412TABLE D/E104
Product Drawing
DN (mm) : 350
D1 (mm) : 470
L (mm) : 76
n-M (mm) : M24
No Bolts : 12
Flange Pattern : TABLE D/E
Weight (kg) : 104
15 KGVSRN800-D800TABLE D
Product Drawing
DN (mm) : 800
D1 (mm) :
L (mm) :
n-M (mm) :
No Bolts :
Flange Pattern : TABLE D
Weight (kg) :
