Resilient Seat Flex Swing Check Valve

  • PN16 pressure rated
  • Flanged Ductile Iron body with a fusion bonded epoxy coating
  • NBR Rubber Encapsulated Ductile Iron Disc,
  • Vulcanized NBR liner/seat as standard configuration.
  • Available in AS2129 Table D and Table E flange pattern
Resilient Seat Flex Swing Check Valve

Resilient Seat Flex Swing Check Valve - 16 Bar - TABLE D/E

Show full data

Variants: 8

#CodeDN (mm)D2 (mm)D1 (mm)D (mm)b. (mm)C (mm)n-d (mm)No BoltsL (mm)Weight (kg)
1 CVFRSE0505099125165319M164203

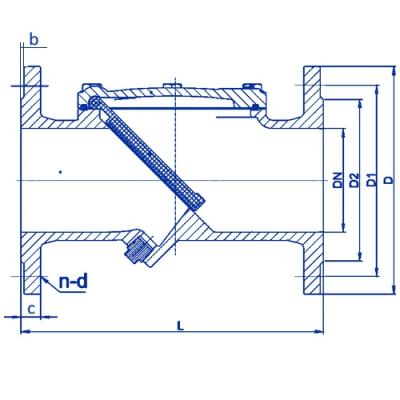

Product Drawing
DN (mm) : 50
D2 (mm) : 99
D1 (mm) : 125
D (mm) : 165
b. (mm) : 3
C (mm) : 19
n-d (mm) : M16
No Bolts : 4
L (mm) : 203
Weight (kg) :
2 CVFRSE06565118145185319M164216
Product Drawing
DN (mm) : 65
D2 (mm) : 118
D1 (mm) : 145
D (mm) : 185
b. (mm) : 3
C (mm) : 19
n-d (mm) : M16
No Bolts : 4
L (mm) : 216
Weight (kg) :
3 CVFRSE08080132160200319M16424115
Product Drawing
DN (mm) : 80
D2 (mm) : 132
D1 (mm) : 160
D (mm) : 200
b. (mm) : 3
C (mm) : 19
n-d (mm) : M16
No Bolts : 4
L (mm) : 241
Weight (kg) : 15
4 CVFRSE100100156180220319M16829221
Product Drawing
DN (mm) : 100
D2 (mm) : 156
D1 (mm) : 180
D (mm) : 220
b. (mm) : 3
C (mm) : 19
n-d (mm) : M16
No Bolts : 8
L (mm) : 292
Weight (kg) : 21
5 CVFRSE150150211240285319M20835640
Product Drawing
DN (mm) : 150
D2 (mm) : 211
D1 (mm) : 240
D (mm) : 285
b. (mm) : 3
C (mm) : 19
n-d (mm) : M20
No Bolts : 8
L (mm) : 356
Weight (kg) : 40
6 CVFRSE200200266295340320M20849576
Product Drawing
DN (mm) : 200
D2 (mm) : 266
D1 (mm) : 295
D (mm) : 340
b. (mm) : 3
C (mm) : 20
n-d (mm) : M20
No Bolts : 8
L (mm) : 495
Weight (kg) : 76
7 CVFRSE250250319355405322M2012622122
Product Drawing
DN (mm) : 250
D2 (mm) : 319
D1 (mm) : 355
D (mm) : 405
b. (mm) : 3
C (mm) : 22
n-d (mm) : M20
No Bolts : 12
L (mm) : 622
Weight (kg) : 122
8 CVFRSE300300370410460424.5M2412698218
Product Drawing
DN (mm) : 300
D2 (mm) : 370
D1 (mm) : 410
D (mm) : 460
b. (mm) : 4
C (mm) : 24.5
n-d (mm) : M24
No Bolts : 12
L (mm) : 698
Weight (kg) : 218
Resilient Seat Flex Swing Check Valve

Resilient Seat Flex Swing Check Valve - 16 Bar - TABLE D

Show full data

Variants: 2

#CodeDN (mm)D2 (mm)D1 (mm)D (mm)b. (mm)C (mm)n-d (mm)No BoltsL (mm)Weight (kg)
1 CVFRSD100100156180220319M16429221
Product Drawing
DN (mm) : 100
D2 (mm) : 156
D1 (mm) : 180
D (mm) : 220
b. (mm) : 3
C (mm) : 19
n-d (mm) : M16
No Bolts : 4
L (mm) : 292
Weight (kg) : 21
2 CVFRSD250250319355405322M208622122
Product Drawing
DN (mm) : 250
D2 (mm) : 319
D1 (mm) : 355
D (mm) : 405
b. (mm) : 3
C (mm) : 22
n-d (mm) : M20
No Bolts : 8
L (mm) : 622
Weight (kg) : 122
