Threaded Adaptors

Material: PE 100-RC
Installation: Butt or Electrofusion welding

Threaded Adaptors - Male BSP - PE x PE

Variants: 11

	#	Code	D1 (mm)	D2 (Inch)	A (mm)	C (mm)	Weight (kg)
	1	TAMP020X1/2	20	1/2”	91	22	0.03
D1 (mm) : 20 D2 (Inch) : 1/2” A (mm) : 91 C (mm) : 22 Weight (kg) : 0.03
	2	TAMP025X3/4	25	3/4”	93	28	0.04
D1 (mm) : 25 D2 (Inch) : 3/4” A (mm) : 93 C (mm) : 28 Weight (kg) : 0.04
	3	TAMP032X1	32	1”	102	34	0.06
D1 (mm) : 32 D2 (Inch) : 1” A (mm) : 102 C (mm) : 34 Weight (kg) : 0.06
	4	TAMP040X1	40	1”	107	34	0.08
D1 (mm) : 40 D2 (Inch) : 1” A (mm) : 107 C (mm) : 34 Weight (kg) : 0.08
	5	TAMP040X11/4	40	1 1/4”	113	44	0.1
D1 (mm) : 40 D2 (Inch) : 1 1/4” A (mm) : 113 C (mm) : 44 Weight (kg) : 0.1
	6	TAMP050X11/2	50	1 1/2”	123	49	0.13
D1 (mm) : 50 D2 (Inch) : 1 1/2” A (mm) : 123 C (mm) : 49 Weight (kg) : 0.13
	7	TAMP063X2	63	2”	139	61	0.23
D1 (mm) : 63 D2 (Inch) : 2” A (mm) : 139 C (mm) : 61 Weight (kg) : 0.23
	8	TAMP075X21/2	75	2 1/2”	158	76	0.4
D1 (mm) : 75 D2 (Inch) : 2 1/2” A (mm) : 158 C (mm) : 76 Weight (kg) : 0.4
	9	TAMP090X3	90	3”	175	88	0.53
D1 (mm) : 90 D2 (Inch) : 3” A (mm) : 175 C (mm) : 88 Weight (kg) : 0.53
	10	TAMP110X4	110	4”	196	114	0.85
D1 (mm) : 110 D2 (Inch) : 4” A (mm) : 196 C (mm) : 114 Weight (kg) : 0.85
	11	TAMP125X4	125	4”	196	114	0.99
D1 (mm) : 125 D2 (Inch) : 4” A (mm) : 196 C (mm) : 114 Weight (kg) : 0.99

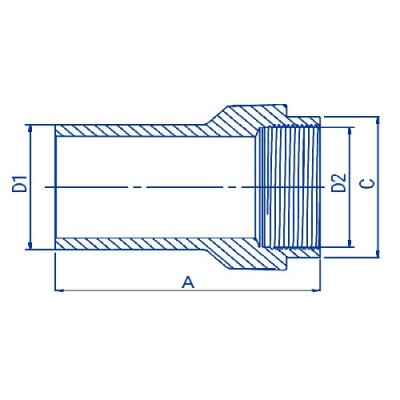

Threaded Adaptors - Female BSP - PE x PE

Show full data

Variants: 11

	#	Code	D1 (mm)	D2 (Inch)	A (mm)	C (mm)	Weight (kg)
	1	TAFP020X1/2	20	1/2”	77	26	0.03
D1 (mm) : 20 D2 (Inch) : 1/2” A (mm) : 77 C (mm) : 26 Weight (kg) : 0.03
	2	TAFP025X3/4	25	3/4”	78	32	0.04
D1 (mm) : 25 D2 (Inch) : 3/4” A (mm) : 78 C (mm) : 32 Weight (kg) : 0.04
	3	TAFP032X1	32	1”	83	40	0.06
D1 (mm) : 32 D2 (Inch) : 1” A (mm) : 83 C (mm) : 40 Weight (kg) : 0.06
	4	TAFP040X1	40	1”	88	40	0.07
D1 (mm) : 40 D2 (Inch) : 1” A (mm) : 88 C (mm) : 40 Weight (kg) : 0.07
	5	TAFP040X11/4	40	1 1/4”	96	48	0.09
D1 (mm) : 40 D2 (Inch) : 1 1/4” A (mm) : 96 C (mm) : 48 Weight (kg) : 0.09
	6	TAFP050X11/2	50	1 1/2”	103	55	0.12
D1 (mm) : 50 D2 (Inch) : 1 1/2” A (mm) : 103 C (mm) : 55 Weight (kg) : 0.12
	7	TAFP063X2	63	2”	115	67	0.19
D1 (mm) : 63 D2 (Inch) : 2” A (mm) : 115 C (mm) : 67 Weight (kg) : 0.19
	8	TAFP075X21/2	75	2 1/2”	130	83	0.39
D1 (mm) : 75 D2 (Inch) : 2 1/2” A (mm) : 130 C (mm) : 83 Weight (kg) : 0.39
	9	TAFP090X3	90	3”	147	96	0.45
D1 (mm) : 90 D2 (Inch) : 3” A (mm) : 147 C (mm) : 96 Weight (kg) : 0.45
	10	TAFP110X4	110	4”	160	122	0.72
D1 (mm) : 110 D2 (Inch) : 4” A (mm) : 160 C (mm) : 122 Weight (kg) : 0.72
	11	TAFP125X4	125	4”	160	122	0.86
D1 (mm) : 125 D2 (Inch) : 4” A (mm) : 160 C (mm) : 122 Weight (kg) : 0.86

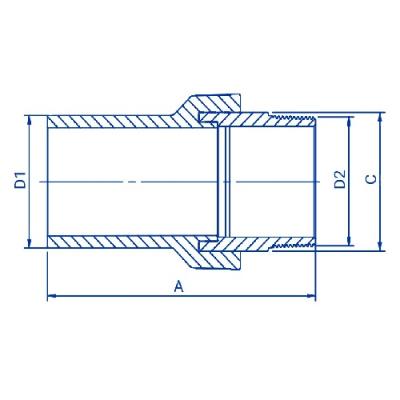

Threaded Adaptors - Male BSP - PE x SS316

Show full data

Variants: 10

	#	Code	D1 (mm)	D2 (Inch)	A (mm)	C (mm)	Weight (kg)
	1	TAMS020X1/2	20	1/2”	95	22	0.1
D1 (mm) : 20 D2 (Inch) : 1/2” A (mm) : 95 C (mm) : 22 Weight (kg) : 0.1
	2	TAMS025X3/4	25	3/4”	90	28	0.15
D1 (mm) : 25 D2 (Inch) : 3/4” A (mm) : 90 C (mm) : 28 Weight (kg) : 0.15
	3	TAMS032X1	32	1”	105	34	0.25
D1 (mm) : 32 D2 (Inch) : 1” A (mm) : 105 C (mm) : 34 Weight (kg) : 0.25
	4	TAMS040X11/4	40	1 1/4”	120	44	0.4
D1 (mm) : 40 D2 (Inch) : 1 1/4” A (mm) : 120 C (mm) : 44 Weight (kg) : 0.4
	5	TAMS050X11/2	50	1 1/2”	125	49	0.52
D1 (mm) : 50 D2 (Inch) : 1 1/2” A (mm) : 125 C (mm) : 49 Weight (kg) : 0.52
	6	TAMS063X2	63	2”	140	61	0.73
D1 (mm) : 63 D2 (Inch) : 2” A (mm) : 140 C (mm) : 61 Weight (kg) : 0.73
	7	TAMS075X21/2	75	2 1/2”	155	76	1.2
D1 (mm) : 75 D2 (Inch) : 2 1/2” A (mm) : 155 C (mm) : 76 Weight (kg) : 1.2
	8	TAMS090X3	90	3”	170	88	1.6
D1 (mm) : 90 D2 (Inch) : 3” A (mm) : 170 C (mm) : 88 Weight (kg) : 1.6
	9	TAMS110X4	110	4”	200	114	2.9
D1 (mm) : 110 D2 (Inch) : 4” A (mm) : 200 C (mm) : 114 Weight (kg) : 2.9
	10	TAMS125X4	125	4”	200	114	2.9
D1 (mm) : 125 D2 (Inch) : 4” A (mm) : 200 C (mm) : 114 Weight (kg) : 2.9

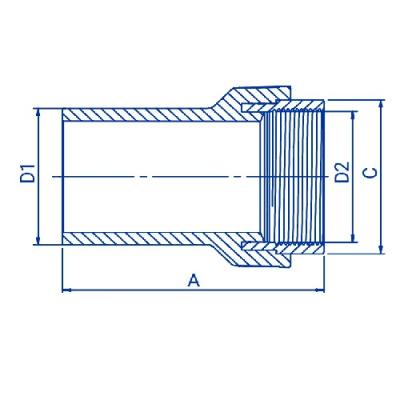

Threaded Adaptors - Female BSP - PE x SS316

Show full data

Variants: 10

	#	Code	D1 (mm)	D2 (Inch)	A (mm)	C (mm)	Weight (kg)
	1	TAFS020X1/2	20	1/2”	80	26	0.08
D1 (mm) : 20 D2 (Inch) : 1/2” A (mm) : 80 C (mm) : 26 Weight (kg) : 0.08
	2	TAFS025X3/4	25	3/4”	80	32	0.12
D1 (mm) : 25 D2 (Inch) : 3/4” A (mm) : 80 C (mm) : 32 Weight (kg) : 0.12
	3	TAFS032X1	32	1”	90	40	0.2
D1 (mm) : 32 D2 (Inch) : 1” A (mm) : 90 C (mm) : 40 Weight (kg) : 0.2
	4	TAFS040X11/4	40	1 1/4”	100	48	0.3
D1 (mm) : 40 D2 (Inch) : 1 1/4” A (mm) : 100 C (mm) : 48 Weight (kg) : 0.3
	5	TAFS050X11/2	50	1 1/2”	100	55	0.35
D1 (mm) : 50 D2 (Inch) : 1 1/2” A (mm) : 100 C (mm) : 55 Weight (kg) : 0.35
	6	TAFS063X2	63	2”	120	67	0.58
D1 (mm) : 63 D2 (Inch) : 2” A (mm) : 120 C (mm) : 67 Weight (kg) : 0.58
	7	TAFS075X21/2	75	2 1/2”	130	83	0.75
D1 (mm) : 75 D2 (Inch) : 2 1/2” A (mm) : 130 C (mm) : 83 Weight (kg) : 0.75
	8	TAFS090X3	90	3”	145	96	1
D1 (mm) : 90 D2 (Inch) : 3” A (mm) : 145 C (mm) : 96 Weight (kg) : 1
	9	TAFS110X4	110	4”	160	122	1.9
D1 (mm) : 110 D2 (Inch) : 4” A (mm) : 160 C (mm) : 122 Weight (kg) : 1.9
	10	TAFS125X4	125	4”	160	122	2
D1 (mm) : 125 D2 (Inch) : 4” A (mm) : 160 C (mm) : 122 Weight (kg) : 2

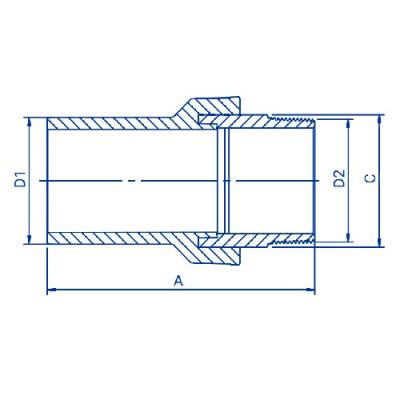

Threaded Adaptors - Male BSP - PE x Brass

Show full data

Variants: 11

	#	Code	D1 (mm)	D2 (Inch)	A (mm)	C (mm)	Weight (kg)
	1	TAMB020X1/2	20	1/2”	91	22	0.08
D1 (mm) : 20 D2 (Inch) : 1/2” A (mm) : 91 C (mm) : 22 Weight (kg) : 0.08
	2	TAMB025X3/4	25	3/4”	93	28	0.12
D1 (mm) : 25 D2 (Inch) : 3/4” A (mm) : 93 C (mm) : 28 Weight (kg) : 0.12
	3	TAMB032X1	32	1”	102	34	0.17
D1 (mm) : 32 D2 (Inch) : 1” A (mm) : 102 C (mm) : 34 Weight (kg) : 0.17
	4	TAMB040X1	40	1”	107	34	0.16
D1 (mm) : 40 D2 (Inch) : 1” A (mm) : 107 C (mm) : 34 Weight (kg) : 0.16
	5	TAMB040X11/4	40	1 1/4”	113	44	0.28
D1 (mm) : 40 D2 (Inch) : 1 1/4” A (mm) : 113 C (mm) : 44 Weight (kg) : 0.28
	6	TAMB050X11/2	50	1 1/2”	123	49	0.36
D1 (mm) : 50 D2 (Inch) : 1 1/2” A (mm) : 123 C (mm) : 49 Weight (kg) : 0.36
	7	TAMB063X2	63	2”	139	61	0.67
D1 (mm) : 63 D2 (Inch) : 2” A (mm) : 139 C (mm) : 61 Weight (kg) : 0.67
	8	TAMB075X21/2	75	2 1/2”	158	76	0.96
D1 (mm) : 75 D2 (Inch) : 2 1/2” A (mm) : 158 C (mm) : 76 Weight (kg) : 0.96
	9	TAMB090X3	90	3”	175	88	1.4
D1 (mm) : 90 D2 (Inch) : 3” A (mm) : 175 C (mm) : 88 Weight (kg) : 1.4
	10	TAMB110X4	110	4”	196	114	2.35
D1 (mm) : 110 D2 (Inch) : 4” A (mm) : 196 C (mm) : 114 Weight (kg) : 2.35
	11	TAMB125X4	125	4”	196	114	2.44
D1 (mm) : 125 D2 (Inch) : 4” A (mm) : 196 C (mm) : 114 Weight (kg) : 2.44

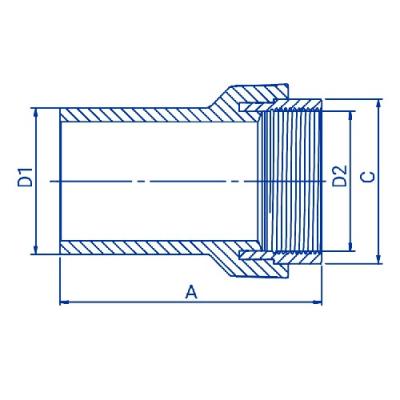

Threaded Adaptors - Female BSP - PE x Brass

Show full data

Variants: 11

	#	Code	D1 (mm)	D2 (Inch)	A (mm)	C (mm)	Weight (kg)
	1	TAFB020X1/2	20	1/2”	77	26	0.07
D1 (mm) : 20 D2 (Inch) : 1/2” A (mm) : 77 C (mm) : 26 Weight (kg) : 0.07
	2	TAFB025X3/4	25	3/4”	78	32	0.09
D1 (mm) : 25 D2 (Inch) : 3/4” A (mm) : 78 C (mm) : 32 Weight (kg) : 0.09
	3	TAFB032X1	32	1”	83	40	0.14
D1 (mm) : 32 D2 (Inch) : 1” A (mm) : 83 C (mm) : 40 Weight (kg) : 0.14
	4	TAFB040X1	40	1”	88	40	0.16
D1 (mm) : 40 D2 (Inch) : 1” A (mm) : 88 C (mm) : 40 Weight (kg) : 0.16
	5	TAFB040X11/4	40	1 1/4”	96	48	0.2
D1 (mm) : 40 D2 (Inch) : 1 1/4” A (mm) : 96 C (mm) : 48 Weight (kg) : 0.2
	6	TAFB050X11/2	50	1 1/2”	103	55	0.29
D1 (mm) : 50 D2 (Inch) : 1 1/2” A (mm) : 103 C (mm) : 55 Weight (kg) : 0.29
	7	TAFB063X2	63	2”	115	67	0.41
D1 (mm) : 63 D2 (Inch) : 2” A (mm) : 115 C (mm) : 67 Weight (kg) : 0.41
	8	TAFB075X21/2	75	2 1/2”	130	83	0.65
D1 (mm) : 75 D2 (Inch) : 2 1/2” A (mm) : 130 C (mm) : 83 Weight (kg) : 0.65
	9	TAFB090X3	90	3”	147	96	1.02
D1 (mm) : 90 D2 (Inch) : 3” A (mm) : 147 C (mm) : 96 Weight (kg) : 1.02
	10	TAFB110X4	110	4”	160	122	1.5
D1 (mm) : 110 D2 (Inch) : 4” A (mm) : 160 C (mm) : 122 Weight (kg) : 1.5
	11	TAFB125X4	125	4”	160	122	1.59
D1 (mm) : 125 D2 (Inch) : 4” A (mm) : 160 C (mm) : 122 Weight (kg) : 1.59
