Junction

'

Junction

Material: PE 100-RC
Application: water and gas
Installation: Butt or Electrofusion welding

Junction

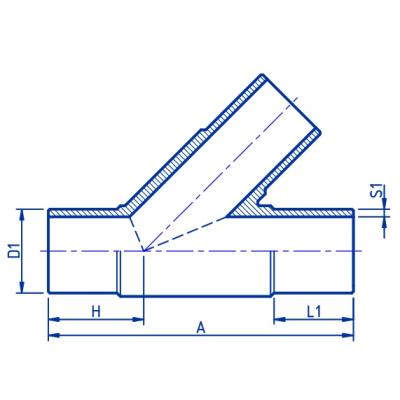

Junction - Injection Moulded - SDR17 - 45°

Variants: 7

	#	Code	D1 (mm)	A (mm)	L1 (mm)	H (mm)	S1 (mm)	Weight (kg)
	1	J4517110	110	400	90	130	6.6
D1 (mm) : 110 A (mm) : 400 L1 (mm) : 90 H (mm) : 130 S1 (mm) : 6.6 Weight (kg) :
	2	J4517125	125	420	95	135	7.4
D1 (mm) : 125 A (mm) : 420 L1 (mm) : 95 H (mm) : 135 S1 (mm) : 7.4 Weight (kg) :
	3	J4517160	160	485	105	150	9.5
D1 (mm) : 160 A (mm) : 485 L1 (mm) : 105 H (mm) : 150 S1 (mm) : 9.5 Weight (kg) :
	4	J4517200	200	605	115	180	11.9
D1 (mm) : 200 A (mm) : 605 L1 (mm) : 115 H (mm) : 180 S1 (mm) : 11.9 Weight (kg) :
	5	J4517225	225	700	125	200	13.4
D1 (mm) : 225 A (mm) : 700 L1 (mm) : 125 H (mm) : 200 S1 (mm) : 13.4 Weight (kg) :
	6	J4517250	250	700	125	200	14.8
D1 (mm) : 250 A (mm) : 700 L1 (mm) : 125 H (mm) : 200 S1 (mm) : 14.8 Weight (kg) :
	7	J4517315	315	850	150	235	18.7
D1 (mm) : 315 A (mm) : 850 L1 (mm) : 150 H (mm) : 235 S1 (mm) : 18.7 Weight (kg) :

Junction

Junction - Injection Moulded - SDR11 - 45°

Variants: 10

	#	Code	D1 (mm)	A (mm)	L1 (mm)	H (mm)	S1 (mm)	Weight (kg)
	1	J4511063	63	230	58	85	5.8
D1 (mm) : 63 A (mm) : 230 L1 (mm) : 58 H (mm) : 85 S1 (mm) : 5.8 Weight (kg) :
	2	J4511075	75	280	68	90	6.8
D1 (mm) : 75 A (mm) : 280 L1 (mm) : 68 H (mm) : 90 S1 (mm) : 6.8 Weight (kg) :
	3	J4511090	90	315	70	100	8.2
D1 (mm) : 90 A (mm) : 315 L1 (mm) : 70 H (mm) : 100 S1 (mm) : 8.2 Weight (kg) :
	4	J4511110	110	400	90	130	10
D1 (mm) : 110 A (mm) : 400 L1 (mm) : 90 H (mm) : 130 S1 (mm) : 10 Weight (kg) :
	5	J4511125	125	420	95	135	11.4
D1 (mm) : 125 A (mm) : 420 L1 (mm) : 95 H (mm) : 135 S1 (mm) : 11.4 Weight (kg) :
	6	J4511160	160	485	105	150	14.6
D1 (mm) : 160 A (mm) : 485 L1 (mm) : 105 H (mm) : 150 S1 (mm) : 14.6 Weight (kg) :
	7	J4511200	200	605	115	180	18.2
D1 (mm) : 200 A (mm) : 605 L1 (mm) : 115 H (mm) : 180 S1 (mm) : 18.2 Weight (kg) :
	8	J4511225	225	700	125	200	20.5
D1 (mm) : 225 A (mm) : 700 L1 (mm) : 125 H (mm) : 200 S1 (mm) : 20.5 Weight (kg) :
	9	J4511250	250	700	125	200	22.7
D1 (mm) : 250 A (mm) : 700 L1 (mm) : 125 H (mm) : 200 S1 (mm) : 22.7 Weight (kg) :
	10	J4511315	315	850	150	235	28.6
D1 (mm) : 315 A (mm) : 850 L1 (mm) : 150 H (mm) : 235 S1 (mm) : 28.6 Weight (kg) :
