Blind Flanges - Threaded

  • Application: Above ground and buried
  • Sealing Integrity: Even load distribution
  • Threaded: BSP
  • Suitable: Gas, Water, Slurry, Compressed Air and Corrosive systems
Blind Flanges - Threaded

Blind Flanges - Threaded - Galvanised - PN16

Show full data

Variants: 12

#CodeSize (mm)D1 (mm)D2 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 GBF16050-163 (2")1501"1111418M1641.44

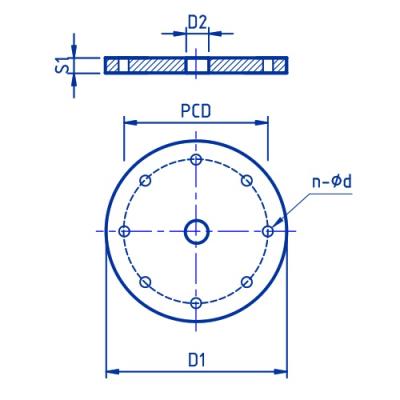

Product Drawing
Size (mm) : 63 (2")
D1 (mm) : 150
D2 (mm) : 1"
S1 (mm) : 11
PCD (mm) : 114
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.44
2 GBF16080-290 (3")1852"1114618M1642.23
Product Drawing
Size (mm) : 90 (3")
D1 (mm) : 185
D2 (mm) : 2"
S1 (mm) : 11
PCD (mm) : 146
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 2.23
3 GBF16100-2110 (4")2152"1317818M1643.51
Product Drawing
Size (mm) : 110 (4")
D1 (mm) : 215
D2 (mm) : 2"
S1 (mm) : 13
PCD (mm) : 178
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 3.51
4 GBF16150-2160/180 (6")2802"1323518M1686.08
Product Drawing
Size (mm) : 160/180 (6")
D1 (mm) : 280
D2 (mm) : 2"
S1 (mm) : 13
PCD (mm) : 235
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 6.08
5 GBF16200-2200/225 (8")3352"1929218M16812.85
Product Drawing
Size (mm) : 200/225 (8")
D1 (mm) : 335
D2 (mm) : 2"
S1 (mm) : 19
PCD (mm) : 292
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 12.85
6 GBF16250-2250/280 (10")4052"1935622M20818.77
Product Drawing
Size (mm) : 250/280 (10")
D1 (mm) : 405
D2 (mm) : 2"
S1 (mm) : 19
PCD (mm) : 356
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 18.77
7 GBF16300-2315 (12")4552"2340622M201228.55
Product Drawing
Size (mm) : 315 (12")
D1 (mm) : 455
D2 (mm) : 2"
S1 (mm) : 23
PCD (mm) : 406
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 12
Weight (kg) : 28.55
8 GBF16350-2350 (14")5252"3047026M241249.52
Product Drawing
Size (mm) : 350 (14")
D1 (mm) : 525
D2 (mm) : 2"
S1 (mm) : 30
PCD (mm) : 470
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 49.52
9 GBF16400-2400 (16")5802"3052126M241260.77
Product Drawing
Size (mm) : 400 (16")
D1 (mm) : 580
D2 (mm) : 2"
S1 (mm) : 30
PCD (mm) : 521
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 60.77
10 GBF16450-2450 (18")6402"3058426M241274.32
Product Drawing
Size (mm) : 450 (18")
D1 (mm) : 640
D2 (mm) : 2"
S1 (mm) : 30
PCD (mm) : 584
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 74.32
11 GBF16500-2500 (20")7052"3864126M2416114
Product Drawing
Size (mm) : 500 (20")
D1 (mm) : 705
D2 (mm) : 2"
S1 (mm) : 38
PCD (mm) : 641
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 16
Weight (kg) : 114
12 GBF16600-2600 (24")8252"4875630M2716197.31
Product Drawing
Size (mm) : 600 (24")
D1 (mm) : 825
D2 (mm) : 2"
S1 (mm) : 48
PCD (mm) : 756
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 16
Weight (kg) : 197.31
Blind Flanges - Threaded

Blind Flanges - Threaded - Galvanised - Table E

Show full data

Variants: 13

#CodeSize (mm)D1 (mm)D2 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 GBFE100-2110 (4")2152"1317818M1683.5
Product Drawing
Size (mm) : 110 (4")
D1 (mm) : 215
D2 (mm) : 2"
S1 (mm) : 13
PCD (mm) : 178
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 3.5
2 GBFE125-2125/140 (5")2552"1421018M1685.39
Product Drawing
Size (mm) : 125/140 (5")
D1 (mm) : 255
D2 (mm) : 2"
S1 (mm) : 14
PCD (mm) : 210
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 5.39
3 GBFE150-2160/180 (6")2802"1723522M2087.82
Product Drawing
Size (mm) : 160/180 (6")
D1 (mm) : 280
D2 (mm) : 2"
S1 (mm) : 17
PCD (mm) : 235
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 7.82
4 GBFE200-2200/225 (8")3352"1929222M20812.7
Product Drawing
Size (mm) : 200/225 (8")
D1 (mm) : 335
D2 (mm) : 2"
S1 (mm) : 19
PCD (mm) : 292
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 12.7
5 GBFE250-2250/280 (10")4052"2235622M201212.7
Product Drawing
Size (mm) : 250/280 (10")
D1 (mm) : 405
D2 (mm) : 2"
S1 (mm) : 22
PCD (mm) : 356
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 12
Weight (kg) : 12.7
6 GBFE300-2315 (12")4552"2540626M241230.68
Product Drawing
Size (mm) : 315 (12")
D1 (mm) : 455
D2 (mm) : 2"
S1 (mm) : 25
PCD (mm) : 406
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 30.68
7 GBFE350-2350 (14")5252"2947026M241247.87
Product Drawing
Size (mm) : 350 (14")
D1 (mm) : 525
D2 (mm) : 2"
S1 (mm) : 29
PCD (mm) : 470
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 47.87
8 GBFE400-2400 (16")5802"3252126M241264.82
Product Drawing
Size (mm) : 400 (16")
D1 (mm) : 580
D2 (mm) : 2"
S1 (mm) : 32
PCD (mm) : 521
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 64.82
9 GBFE450-2450 (18")6402"3258426M241678.74
Product Drawing
Size (mm) : 450 (18")
D1 (mm) : 640
D2 (mm) : 2"
S1 (mm) : 32
PCD (mm) : 584
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 16
Weight (kg) : 78.74
10 GBFE500-2500 (20")7052"3864126M2416114
Product Drawing
Size (mm) : 500 (20")
D1 (mm) : 705
D2 (mm) : 2"
S1 (mm) : 38
PCD (mm) : 641
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 16
Weight (kg) : 114
11 GBFE550-2560 (22")7602"4469930M2716153.15
Product Drawing
Size (mm) : 560 (22")
D1 (mm) : 760
D2 (mm) : 2"
S1 (mm) : 44
PCD (mm) : 699
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 16
Weight (kg) : 153.15
12 GBFE600-2630 (24")8252"4875633M3016196.73
Product Drawing
Size (mm) : 630 (24")
D1 (mm) : 825
D2 (mm) : 2"
S1 (mm) : 48
PCD (mm) : 756
n-Ød (mm) : 33
Bolt Size : M30
No Bolts : 16
Weight (kg) : 196.73
13 GBFE600-2X2630 (24")8252"4875633M3016196.73
Product Drawing
Size (mm) : 630 (24")
D1 (mm) : 825
D2 (mm) : 2"
S1 (mm) : 48
PCD (mm) : 756
n-Ød (mm) : 33
Bolt Size : M30
No Bolts : 16
Weight (kg) : 196.73
