Blind Flanges

  • Application: Above ground and buried
  • Sealing Integrity: Even load distribution
  • Suitable: Gas, Water, Slurry, Compressed Air and Corrosive systems
Custom Option

Blind Flanges - Galvanised - PN16

Show full data

Variants: 18

#CodeSize (mm)D1 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 GBF1605063 (2")1501111418M1641.44

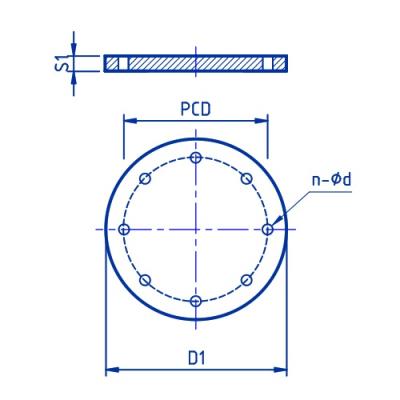

Product Drawing
Size (mm) : 63 (2")
D1 (mm) : 150
S1 (mm) : 11
PCD (mm) : 114
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.44
2 GBF1606575 (2 1/2")1651112718M1641.76
Product Drawing
Size (mm) : 75 (2 1/2")
D1 (mm) : 165
S1 (mm) : 11
PCD (mm) : 127
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.76
3 GBF1608090 (3")1851114618M1642.23
Product Drawing
Size (mm) : 90 (3")
D1 (mm) : 185
S1 (mm) : 11
PCD (mm) : 146
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 2.23
4 GBF16100110 (4")2151317818M1643.6
Product Drawing
Size (mm) : 110 (4")
D1 (mm) : 215
S1 (mm) : 13
PCD (mm) : 178
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 3.6
5 GBF16125125 (5")2551321018M168
Product Drawing
Size (mm) : 125 (5")
D1 (mm) : 255
S1 (mm) : 13
PCD (mm) : 210
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) :
6 GBF16150160/180 (6")2801323518M1686.08
Product Drawing
Size (mm) : 160/180 (6")
D1 (mm) : 280
S1 (mm) : 13
PCD (mm) : 235
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 6.08
7 GBF16200200/225 (8")3351929218M16812.85
Product Drawing
Size (mm) : 200/225 (8")
D1 (mm) : 335
S1 (mm) : 19
PCD (mm) : 292
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 12.85
8 GBF16250250/280 (10")4051935622M20818.77
Product Drawing
Size (mm) : 250/280 (10")
D1 (mm) : 405
S1 (mm) : 19
PCD (mm) : 356
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 18.77
9 GBF16300315 (12")4552340622M201228.55
Product Drawing
Size (mm) : 315 (12")
D1 (mm) : 455
S1 (mm) : 23
PCD (mm) : 406
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 12
Weight (kg) : 28.55
10 GBF16350350 (14")5253047026M241249.52
Product Drawing
Size (mm) : 350 (14")
D1 (mm) : 525
S1 (mm) : 30
PCD (mm) : 470
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 49.52
11 GBF16400400 (16")5803052126M241260.77
Product Drawing
Size (mm) : 400 (16")
D1 (mm) : 580
S1 (mm) : 30
PCD (mm) : 521
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 60.77
12 GBF16450450 (18")6403058426M241274.32
Product Drawing
Size (mm) : 450 (18")
D1 (mm) : 640
S1 (mm) : 30
PCD (mm) : 584
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 74.32
13 GBF16500500 (20")7053864126M2416114
Product Drawing
Size (mm) : 500 (20")
D1 (mm) : 705
S1 (mm) : 38
PCD (mm) : 641
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 16
Weight (kg) : 114
14 GBF16600600 (24")8254875630M2716197.31
Product Drawing
Size (mm) : 600 (24")
D1 (mm) : 825
S1 (mm) : 48
PCD (mm) : 756
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 16
Weight (kg) : 197.31
15 GBF16700700 (28")9105684530M2720279.91
Product Drawing
Size (mm) : 700 (28")
D1 (mm) : 910
S1 (mm) : 56
PCD (mm) : 845
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 20
Weight (kg) : 279.91
16 GBF16800800 (32")10605698436M3320379.27
Product Drawing
Size (mm) : 800 (32")
D1 (mm) : 1060
S1 (mm) : 56
PCD (mm) : 984
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 20
Weight (kg) : 379.27
17 GBF16900900 (36")117566109236M3324
Product Drawing
Size (mm) : 900 (36")
D1 (mm) : 1175
S1 (mm) : 66
PCD (mm) : 1092
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 24
Weight (kg) :
18 GBF1610001000 (40")125566117536M3324
Product Drawing
Size (mm) : 1000 (40")
D1 (mm) : 1255
S1 (mm) : 66
PCD (mm) : 1175
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 24
Weight (kg) :
Custom Option

Blind Flanges - Galvanised - ANSI 150 - Reduced Thickness

Show full data

Variants: 24

#CodeSize (mm)D1 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 GBFA01520 (1/2")90860.5161/2"40.26
Product Drawing
Size (mm) : 20 (1/2")
D1 (mm) : 90
S1 (mm) : 8
PCD (mm) : 60.5
n-Ød (mm) : 16
Bolt Size : 1/2"
No Bolts : 4
Weight (kg) : 0.26
2 GBFA02025 (3/4")98870161/2"40.42
Product Drawing
Size (mm) : 25 (3/4")
D1 (mm) : 98
S1 (mm) : 8
PCD (mm) : 70
n-Ød (mm) : 16
Bolt Size : 1/2"
No Bolts : 4
Weight (kg) : 0.42
3 GBFA02532 (1")108879.5161/2"40.53
Product Drawing
Size (mm) : 32 (1")
D1 (mm) : 108
S1 (mm) : 8
PCD (mm) : 79.5
n-Ød (mm) : 16
Bolt Size : 1/2"
No Bolts : 4
Weight (kg) : 0.53
4 GBFA03240 (1 1/4")117889161/2"40.63
Product Drawing
Size (mm) : 40 (1 1/4")
D1 (mm) : 117
S1 (mm) : 8
PCD (mm) : 89
n-Ød (mm) : 16
Bolt Size : 1/2"
No Bolts : 4
Weight (kg) : 0.63
5 GBFA04050 (1 1/2")1271098.5161/2"40.93
Product Drawing
Size (mm) : 50 (1 1/2")
D1 (mm) : 127
S1 (mm) : 10
PCD (mm) : 98.5
n-Ød (mm) : 16
Bolt Size : 1/2"
No Bolts : 4
Weight (kg) : 0.93
6 GBFA05063 (2")15210120.5205/8"41.33
Product Drawing
Size (mm) : 63 (2")
D1 (mm) : 152
S1 (mm) : 10
PCD (mm) : 120.5
n-Ød (mm) : 20
Bolt Size : 5/8"
No Bolts : 4
Weight (kg) : 1.33
7 GBFA06575 (2 1/2")17810139.5205/8"41.86
Product Drawing
Size (mm) : 75 (2 1/2")
D1 (mm) : 178
S1 (mm) : 10
PCD (mm) : 139.5
n-Ød (mm) : 20
Bolt Size : 5/8"
No Bolts : 4
Weight (kg) : 1.86
8 GBFA08090 (3")19112152205/8"42.58
Product Drawing
Size (mm) : 90 (3")
D1 (mm) : 191
S1 (mm) : 12
PCD (mm) : 152
n-Ød (mm) : 20
Bolt Size : 5/8"
No Bolts : 4
Weight (kg) : 2.58
9 GBFA100110 (4")22912190.5205/8"83.65
Product Drawing
Size (mm) : 110 (4")
D1 (mm) : 229
S1 (mm) : 12
PCD (mm) : 190.5
n-Ød (mm) : 20
Bolt Size : 5/8"
No Bolts : 8
Weight (kg) : 3.65
10 GBFA125125/140 (5")22912190.5203/4"85.95
Product Drawing
Size (mm) : 125/140 (5")
D1 (mm) : 229
S1 (mm) : 12
PCD (mm) : 190.5
n-Ød (mm) : 20
Bolt Size : 3/4"
No Bolts : 8
Weight (kg) : 5.95
11 GBFA150160/180 (6")27916241233/4"87.27
Product Drawing
Size (mm) : 160/180 (6")
D1 (mm) : 279
S1 (mm) : 16
PCD (mm) : 241
n-Ød (mm) : 23
Bolt Size : 3/4"
No Bolts : 8
Weight (kg) : 7.27
12 GBFA200200/225 (8")34320298.5233/4"814
Product Drawing
Size (mm) : 200/225 (8")
D1 (mm) : 343
S1 (mm) : 20
PCD (mm) : 298.5
n-Ød (mm) : 23
Bolt Size : 3/4"
No Bolts : 8
Weight (kg) : 14
13 GBFA250250/280 (10")40620362267/8"1219.34
Product Drawing
Size (mm) : 250/280 (10")
D1 (mm) : 406
S1 (mm) : 20
PCD (mm) : 362
n-Ød (mm) : 26
Bolt Size : 7/8"
No Bolts : 12
Weight (kg) : 19.34
14 GBFA300315 (12")48325432267/8"1234.73
Product Drawing
Size (mm) : 315 (12")
D1 (mm) : 483
S1 (mm) : 25
PCD (mm) : 432
n-Ød (mm) : 26
Bolt Size : 7/8"
No Bolts : 12
Weight (kg) : 34.73
15 GBFA350350 (14")53528476291"1247.78
Product Drawing
Size (mm) : 350 (14")
D1 (mm) : 535
S1 (mm) : 28
PCD (mm) : 476
n-Ød (mm) : 29
Bolt Size : 1"
No Bolts : 12
Weight (kg) : 47.78
16 GBFA400400 (16")60032540291"1668.53
Product Drawing
Size (mm) : 400 (16")
D1 (mm) : 600
S1 (mm) : 32
PCD (mm) : 540
n-Ød (mm) : 29
Bolt Size : 1"
No Bolts : 16
Weight (kg) : 68.53
17 GBFA450450 (18")63532578321 1/8"1685.93
Product Drawing
Size (mm) : 450 (18")
D1 (mm) : 635
S1 (mm) : 32
PCD (mm) : 578
n-Ød (mm) : 32
Bolt Size : 1 1/8"
No Bolts : 16
Weight (kg) : 85.93
18 GBFA500500 (20")70038635321 1/8"20115.88
Product Drawing
Size (mm) : 500 (20")
D1 (mm) : 700
S1 (mm) : 38
PCD (mm) : 635
n-Ød (mm) : 32
Bolt Size : 1 1/8"
No Bolts : 20
Weight (kg) : 115.88
19 GBFA550550/560 (22")75044692351 1/4"20
Product Drawing
Size (mm) : 550/560 (22")
D1 (mm) : 750
S1 (mm) : 44
PCD (mm) : 692
n-Ød (mm) : 35
Bolt Size : 1 1/4"
No Bolts : 20
Weight (kg) :
20 GBFA600600/630 (24")81348749351 1/4"20125.87
Product Drawing
Size (mm) : 600/630 (24")
D1 (mm) : 813
S1 (mm) : 48
PCD (mm) : 749
n-Ød (mm) : 35
Bolt Size : 1 1/4"
No Bolts : 20
Weight (kg) : 125.87
21 GBFA700700/710 (28")92771863.5351 1/4"28178.45
Product Drawing
Size (mm) : 700/710 (28")
D1 (mm) : 927
S1 (mm) : 71
PCD (mm) : 863.5
n-Ød (mm) : 35
Bolt Size : 1 1/4"
No Bolts : 28
Weight (kg) : 178.45
22 GBFA800800 (32")106081978411 1/2"28272.77
Product Drawing
Size (mm) : 800 (32")
D1 (mm) : 1060
S1 (mm) : 81
PCD (mm) : 978
n-Ød (mm) : 41
Bolt Size : 1 1/2"
No Bolts : 28
Weight (kg) : 272.77
23 GBFA900900 (36")1170901085.8411 1/2"32
Product Drawing
Size (mm) : 900 (36")
D1 (mm) : 1170
S1 (mm) : 90
PCD (mm) : 1085.8
n-Ød (mm) : 41
Bolt Size : 1 1/2"
No Bolts : 32
Weight (kg) :
24 GBFA10001000 (40")1290901124411 1/2"36
Product Drawing
Size (mm) : 1000 (40")
D1 (mm) : 1290
S1 (mm) : 90
PCD (mm) : 1124
n-Ød (mm) : 41
Bolt Size : 1 1/2"
No Bolts : 36
Weight (kg) :
Custom Option

Blind Flanges - Galvanised - Table D/E

Show full data

Variants: 8

#CodeSize (mm)D1 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 GBFD/E01520 (1/2")9586714M1240.4
Product Drawing
Size (mm) : 20 (1/2")
D1 (mm) : 95
S1 (mm) : 8
PCD (mm) : 67
n-Ød (mm) : 14
Bolt Size : M12
No Bolts : 4
Weight (kg) : 0.4
2 GBFD/E02025 (3/4")10087314M1240.45
Product Drawing
Size (mm) : 25 (3/4")
D1 (mm) : 100
S1 (mm) : 8
PCD (mm) : 73
n-Ød (mm) : 14
Bolt Size : M12
No Bolts : 4
Weight (kg) : 0.45
3 GBFD/E02532 (1")11588314M1240.61
Product Drawing
Size (mm) : 32 (1")
D1 (mm) : 115
S1 (mm) : 8
PCD (mm) : 83
n-Ød (mm) : 14
Bolt Size : M12
No Bolts : 4
Weight (kg) : 0.61
4 GBFD/E03240 (1 1/4")12088714M1240.67
Product Drawing
Size (mm) : 40 (1 1/4")
D1 (mm) : 120
S1 (mm) : 8
PCD (mm) : 87
n-Ød (mm) : 14
Bolt Size : M12
No Bolts : 4
Weight (kg) : 0.67
5 GBFD/E04050 (1 1/2")13589814M1240.86
Product Drawing
Size (mm) : 50 (1 1/2")
D1 (mm) : 135
S1 (mm) : 8
PCD (mm) : 98
n-Ød (mm) : 14
Bolt Size : M12
No Bolts : 4
Weight (kg) : 0.86
6 GBFD/E05063 (2")1501011418M1641.31
Product Drawing
Size (mm) : 63 (2")
D1 (mm) : 150
S1 (mm) : 10
PCD (mm) : 114
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.31
7 GBFD/E06575 (2 1/2")1651012718M1641.6
Product Drawing
Size (mm) : 75 (2 1/2")
D1 (mm) : 165
S1 (mm) : 10
PCD (mm) : 127
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.6
8 GBFD/E08090 (3")1851014618M1642.03
Product Drawing
Size (mm) : 90 (3")
D1 (mm) : 185
S1 (mm) : 10
PCD (mm) : 146
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 2.03
Custom Option

Blind Flanges - Galvanised - Table D

Show full data

Variants: 16

#CodeSize (mm)D1 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 GBFD100110 (4")2151017818M1642.77
Product Drawing
Size (mm) : 110 (4")
D1 (mm) : 215
S1 (mm) : 10
PCD (mm) : 178
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 2.77
2 GBFD125125/140 (5")2551321018M1685.01
Product Drawing
Size (mm) : 125/140 (5")
D1 (mm) : 255
S1 (mm) : 13
PCD (mm) : 210
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 5.01
3 GBFD150160/180 (6")2801323518M1686.08
Product Drawing
Size (mm) : 160/180 (6")
D1 (mm) : 280
S1 (mm) : 13
PCD (mm) : 235
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 6.08
4 GBFD200200 (8")3351329218M1688.79
Product Drawing
Size (mm) : 200 (8")
D1 (mm) : 335
S1 (mm) : 13
PCD (mm) : 292
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 8.79
5 GBFD250250/280 (10")4051635622M20815.81
Product Drawing
Size (mm) : 250/280 (10")
D1 (mm) : 405
S1 (mm) : 16
PCD (mm) : 356
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 15.81
6 GBFD300315 (12")4551940622M201223.59
Product Drawing
Size (mm) : 315 (12")
D1 (mm) : 455
S1 (mm) : 19
PCD (mm) : 406
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 12
Weight (kg) : 23.59
7 GBFD350350 (14")5252247026M241236.31
Product Drawing
Size (mm) : 350 (14")
D1 (mm) : 525
S1 (mm) : 22
PCD (mm) : 470
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 36.31
8 GBFD400400 (16")5802252126M241244.56
Product Drawing
Size (mm) : 400 (16")
D1 (mm) : 580
S1 (mm) : 22
PCD (mm) : 521
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 44.56
9 GBFD450450 (18")6402558426M241261.93
Product Drawing
Size (mm) : 450 (18")
D1 (mm) : 640
S1 (mm) : 25
PCD (mm) : 584
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 61.93
10 GBFD500500 (20")7052964126M241687
Product Drawing
Size (mm) : 500 (20")
D1 (mm) : 705
S1 (mm) : 29
PCD (mm) : 641
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 16
Weight (kg) : 87
11 GBFD550560 (22")7603269930M2716111.38
Product Drawing
Size (mm) : 560 (22")
D1 (mm) : 760
S1 (mm) : 32
PCD (mm) : 699
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 16
Weight (kg) : 111.38
12 GBFD600630 (24")8253275630M2716131.15
Product Drawing
Size (mm) : 630 (24")
D1 (mm) : 825
S1 (mm) : 32
PCD (mm) : 756
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 16
Weight (kg) : 131.15
13 GBFD700710 (28")9103584530M2720174.41
Product Drawing
Size (mm) : 710 (28")
D1 (mm) : 910
S1 (mm) : 35
PCD (mm) : 845
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 20
Weight (kg) : 174.41
14 GBFD800800 (32")10604198536M3320278.13
Product Drawing
Size (mm) : 800 (32")
D1 (mm) : 1060
S1 (mm) : 41
PCD (mm) : 985
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 20
Weight (kg) : 278.13
15 GBFD900900 (36")117548109236M3324400.64
Product Drawing
Size (mm) : 900 (36")
D1 (mm) : 1175
S1 (mm) : 48
PCD (mm) : 1092
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 24
Weight (kg) : 400.64
16 GBFD10001000 (40")125551117536M3324486.61
Product Drawing
Size (mm) : 1000 (40")
D1 (mm) : 1255
S1 (mm) : 51
PCD (mm) : 1175
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 24
Weight (kg) : 486.61
Custom Option

Blind Flanges - Galvanised - Table E

Show full data

Variants: 16

#CodeSize (mm)D1 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 GBFE100110 (4")2151317818M1683.5
Product Drawing
Size (mm) : 110 (4")
D1 (mm) : 215
S1 (mm) : 13
PCD (mm) : 178
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 3.5
2 GBFE125125/140 (5")2551421018M1685.39
Product Drawing
Size (mm) : 125/140 (5")
D1 (mm) : 255
S1 (mm) : 14
PCD (mm) : 210
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 5.39
3 GBFE150160/180 (6")2801723522M2087.82
Product Drawing
Size (mm) : 160/180 (6")
D1 (mm) : 280
S1 (mm) : 17
PCD (mm) : 235
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 7.82
4 GBFE200200/225 (8")3351929222M20812.7
Product Drawing
Size (mm) : 200/225 (8")
D1 (mm) : 335
S1 (mm) : 19
PCD (mm) : 292
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 12.7
5 GBFE250250/280 (10")4052235622M201221.48
Product Drawing
Size (mm) : 250/280 (10")
D1 (mm) : 405
S1 (mm) : 22
PCD (mm) : 356
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 12
Weight (kg) : 21.48
6 GBFE300315 (12")4552540626M241230.68
Product Drawing
Size (mm) : 315 (12")
D1 (mm) : 455
S1 (mm) : 25
PCD (mm) : 406
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 30.68
7 GBFE350350 (14")5252947026M241247.87
Product Drawing
Size (mm) : 350 (14")
D1 (mm) : 525
S1 (mm) : 29
PCD (mm) : 470
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 47.87
8 GBFE400400 (16")5803252126M241264.82
Product Drawing
Size (mm) : 400 (16")
D1 (mm) : 580
S1 (mm) : 32
PCD (mm) : 521
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 64.82
9 GBFE450450 (18")6403258426M241678.74
Product Drawing
Size (mm) : 450 (18")
D1 (mm) : 640
S1 (mm) : 32
PCD (mm) : 584
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 16
Weight (kg) : 78.74
10 GBFE500500 (20")7053864126M2416114
Product Drawing
Size (mm) : 500 (20")
D1 (mm) : 705
S1 (mm) : 38
PCD (mm) : 641
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 16
Weight (kg) : 114
11 GBFE550560 (22")7604469930M2716153.15
Product Drawing
Size (mm) : 560 (22")
D1 (mm) : 760
S1 (mm) : 44
PCD (mm) : 699
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 16
Weight (kg) : 153.15
12 GBFE600630 (24")8254875633M3016196.73
Product Drawing
Size (mm) : 630 (24")
D1 (mm) : 825
S1 (mm) : 48
PCD (mm) : 756
n-Ød (mm) : 33
Bolt Size : M30
No Bolts : 16
Weight (kg) : 196.73
13 GBFE700710 (28")9105184533M3020254.14
Product Drawing
Size (mm) : 710 (28")
D1 (mm) : 910
S1 (mm) : 51
PCD (mm) : 845
n-Ød (mm) : 33
Bolt Size : M30
No Bolts : 20
Weight (kg) : 254.14
14 GBFE800800 (32")10605498436M3320366.32
Product Drawing
Size (mm) : 800 (32")
D1 (mm) : 1060
S1 (mm) : 54
PCD (mm) : 984
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 20
Weight (kg) : 366.32
15 GBFE900900 (36")117564109236M3324532.23
Product Drawing
Size (mm) : 900 (36")
D1 (mm) : 1175
S1 (mm) : 64
PCD (mm) : 1092
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 24
Weight (kg) : 532.23
16 GBFE10001000 (40")125567117539M3624635.21
Product Drawing
Size (mm) : 1000 (40")
D1 (mm) : 1255
S1 (mm) : 67
PCD (mm) : 1175
n-Ød (mm) : 39
Bolt Size : M36
No Bolts : 24
Weight (kg) : 635.21
Custom Option

Blind Flanges - S/S 316 - PN16

Show full data

Variants: 15

#CodeSize (mm)D1 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 SBF1605063 (2")1501111418M1641.44
Product Drawing
Size (mm) : 63 (2")
D1 (mm) : 150
S1 (mm) : 11
PCD (mm) : 114
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.44
2 SBF1606575 (2 1/2")1651112718M1641.76
Product Drawing
Size (mm) : 75 (2 1/2")
D1 (mm) : 165
S1 (mm) : 11
PCD (mm) : 127
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.76
3 SBF1608090 (3")1851114618M1642.23
Product Drawing
Size (mm) : 90 (3")
D1 (mm) : 185
S1 (mm) : 11
PCD (mm) : 146
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 2.23
4 SBF16100110 (4")2151317818M1643.6
Product Drawing
Size (mm) : 110 (4")
D1 (mm) : 215
S1 (mm) : 13
PCD (mm) : 178
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 3.6
5 SBF16150160/180 (6")2801323518M1686.08
Product Drawing
Size (mm) : 160/180 (6")
D1 (mm) : 280
S1 (mm) : 13
PCD (mm) : 235
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 6.08
6 SBF16200200/225 (8")3351929218M16812.85
Product Drawing
Size (mm) : 200/225 (8")
D1 (mm) : 335
S1 (mm) : 19
PCD (mm) : 292
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 12.85
7 SBF16250250/280 (10")4051935622M20818.77
Product Drawing
Size (mm) : 250/280 (10")
D1 (mm) : 405
S1 (mm) : 19
PCD (mm) : 356
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 18.77
8 SBF16300315 (12")4552340622M201228.55
Product Drawing
Size (mm) : 315 (12")
D1 (mm) : 455
S1 (mm) : 23
PCD (mm) : 406
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 12
Weight (kg) : 28.55
9 SBF16350350 (14")5253047026M241249.52
Product Drawing
Size (mm) : 350 (14")
D1 (mm) : 525
S1 (mm) : 30
PCD (mm) : 470
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 49.52
10 SBF16400400 (16")5803052126M241260.77
Product Drawing
Size (mm) : 400 (16")
D1 (mm) : 580
S1 (mm) : 30
PCD (mm) : 521
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 60.77
11 SBF16450450 (18")6403058426M241274.32
Product Drawing
Size (mm) : 450 (18")
D1 (mm) : 640
S1 (mm) : 30
PCD (mm) : 584
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 74.32
12 SBF16500500 (20")7053864126M2416114
Product Drawing
Size (mm) : 500 (20")
D1 (mm) : 705
S1 (mm) : 38
PCD (mm) : 641
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 16
Weight (kg) : 114
13 SBF16600600 (24")8254875630M2716197.31
Product Drawing
Size (mm) : 600 (24")
D1 (mm) : 825
S1 (mm) : 48
PCD (mm) : 756
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 16
Weight (kg) : 197.31
14 SBF16700700 (28")9105684530M2720279.91
Product Drawing
Size (mm) : 700 (28")
D1 (mm) : 910
S1 (mm) : 56
PCD (mm) : 845
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 20
Weight (kg) : 279.91
15 SBF16800800 (32")10605698436M3320379.27
Product Drawing
Size (mm) : 800 (32")
D1 (mm) : 1060
S1 (mm) : 56
PCD (mm) : 984
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 20
Weight (kg) : 379.27
Custom Option

Blind Flanges - S/S 316 - ANSI 150 - Reduced Thickness

Show full data

Variants: 22

#CodeSize (mm)D1 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 SBFA02025 (3/4")98870161/2"40.42
Product Drawing
Size (mm) : 25 (3/4")
D1 (mm) : 98
S1 (mm) : 8
PCD (mm) : 70
n-Ød (mm) : 16
Bolt Size : 1/2"
No Bolts : 4
Weight (kg) : 0.42
2 SBFA02532 (1")108879.5161/2"40.53
Product Drawing
Size (mm) : 32 (1")
D1 (mm) : 108
S1 (mm) : 8
PCD (mm) : 79.5
n-Ød (mm) : 16
Bolt Size : 1/2"
No Bolts : 4
Weight (kg) : 0.53
3 SBFA03240 (1 1/4")117889161/2"40.63
Product Drawing
Size (mm) : 40 (1 1/4")
D1 (mm) : 117
S1 (mm) : 8
PCD (mm) : 89
n-Ød (mm) : 16
Bolt Size : 1/2"
No Bolts : 4
Weight (kg) : 0.63
4 SBFA04050 (1 1/2")1271098.5161/2"40.93
Product Drawing
Size (mm) : 50 (1 1/2")
D1 (mm) : 127
S1 (mm) : 10
PCD (mm) : 98.5
n-Ød (mm) : 16
Bolt Size : 1/2"
No Bolts : 4
Weight (kg) : 0.93
5 SBFA05063 (2")15210120.5205/8"41.33
Product Drawing
Size (mm) : 63 (2")
D1 (mm) : 152
S1 (mm) : 10
PCD (mm) : 120.5
n-Ød (mm) : 20
Bolt Size : 5/8"
No Bolts : 4
Weight (kg) : 1.33
6 SBFA06575 (2 1/2")17810139.5205/8"41.86
Product Drawing
Size (mm) : 75 (2 1/2")
D1 (mm) : 178
S1 (mm) : 10
PCD (mm) : 139.5
n-Ød (mm) : 20
Bolt Size : 5/8"
No Bolts : 4
Weight (kg) : 1.86
7 SBFA08090 (3")19112152205/8"42.58
Product Drawing
Size (mm) : 90 (3")
D1 (mm) : 191
S1 (mm) : 12
PCD (mm) : 152
n-Ød (mm) : 20
Bolt Size : 5/8"
No Bolts : 4
Weight (kg) : 2.58
8 SBFA100110 (4")22912190.5205/8"83.65
Product Drawing
Size (mm) : 110 (4")
D1 (mm) : 229
S1 (mm) : 12
PCD (mm) : 190.5
n-Ød (mm) : 20
Bolt Size : 5/8"
No Bolts : 8
Weight (kg) : 3.65
9 SBFA125125/140 (5")22912190.5203/4"85.95
Product Drawing
Size (mm) : 125/140 (5")
D1 (mm) : 229
S1 (mm) : 12
PCD (mm) : 190.5
n-Ød (mm) : 20
Bolt Size : 3/4"
No Bolts : 8
Weight (kg) : 5.95
10 SBFA150160/180 (6")27916241233/4"87.27
Product Drawing
Size (mm) : 160/180 (6")
D1 (mm) : 279
S1 (mm) : 16
PCD (mm) : 241
n-Ød (mm) : 23
Bolt Size : 3/4"
No Bolts : 8
Weight (kg) : 7.27
11 SBFA200220/225 (8")34320298.5233/4"814
Product Drawing
Size (mm) : 220/225 (8")
D1 (mm) : 343
S1 (mm) : 20
PCD (mm) : 298.5
n-Ød (mm) : 23
Bolt Size : 3/4"
No Bolts : 8
Weight (kg) : 14
12 SBFA250250/280 (10")40620362267/8"1219.34
Product Drawing
Size (mm) : 250/280 (10")
D1 (mm) : 406
S1 (mm) : 20
PCD (mm) : 362
n-Ød (mm) : 26
Bolt Size : 7/8"
No Bolts : 12
Weight (kg) : 19.34
13 SBFA300315 (12")48325432267/8"1234.73
Product Drawing
Size (mm) : 315 (12")
D1 (mm) : 483
S1 (mm) : 25
PCD (mm) : 432
n-Ød (mm) : 26
Bolt Size : 7/8"
No Bolts : 12
Weight (kg) : 34.73
14 SBFA350350 (14")53528476291"1247.78
Product Drawing
Size (mm) : 350 (14")
D1 (mm) : 535
S1 (mm) : 28
PCD (mm) : 476
n-Ød (mm) : 29
Bolt Size : 1"
No Bolts : 12
Weight (kg) : 47.78
15 SBFA400400 (16")60032540291"1668.53
Product Drawing
Size (mm) : 400 (16")
D1 (mm) : 600
S1 (mm) : 32
PCD (mm) : 540
n-Ød (mm) : 29
Bolt Size : 1"
No Bolts : 16
Weight (kg) : 68.53
16 SBFA450450 (18")63532578321 1/8"1686.06
Product Drawing
Size (mm) : 450 (18")
D1 (mm) : 635
S1 (mm) : 32
PCD (mm) : 578
n-Ød (mm) : 32
Bolt Size : 1 1/8"
No Bolts : 16
Weight (kg) : 86.06
17 SBFA500500 (20")70038635321 1/8"2084.15
Product Drawing
Size (mm) : 500 (20")
D1 (mm) : 700
S1 (mm) : 38
PCD (mm) : 635
n-Ød (mm) : 32
Bolt Size : 1 1/8"
No Bolts : 20
Weight (kg) : 84.15
18 SBFA550560 (22")75044692351 1/4"20106.39
Product Drawing
Size (mm) : 560 (22")
D1 (mm) : 750
S1 (mm) : 44
PCD (mm) : 692
n-Ød (mm) : 35
Bolt Size : 1 1/4"
No Bolts : 20
Weight (kg) : 106.39
19 SBFA600600 (24")81348749351 1/4"20125.87
Product Drawing
Size (mm) : 600 (24")
D1 (mm) : 813
S1 (mm) : 48
PCD (mm) : 749
n-Ød (mm) : 35
Bolt Size : 1 1/4"
No Bolts : 20
Weight (kg) : 125.87
20 SBFA700710 (28")92771863.5351 1/4"28178.45
Product Drawing
Size (mm) : 710 (28")
D1 (mm) : 927
S1 (mm) : 71
PCD (mm) : 863.5
n-Ød (mm) : 35
Bolt Size : 1 1/4"
No Bolts : 28
Weight (kg) : 178.45
21 SBFA800800 (32")106081978411 1/2"28272.77
Product Drawing
Size (mm) : 800 (32")
D1 (mm) : 1060
S1 (mm) : 81
PCD (mm) : 978
n-Ød (mm) : 41
Bolt Size : 1 1/2"
No Bolts : 28
Weight (kg) : 272.77
22 SBFA900900 (36")1170901085.8411 1/2"32
Product Drawing
Size (mm) : 900 (36")
D1 (mm) : 1170
S1 (mm) : 90
PCD (mm) : 1085.8
n-Ød (mm) : 41
Bolt Size : 1 1/2"
No Bolts : 32
Weight (kg) :
Custom Option

Blind Flanges - S/S 316 - Table D/E

Show full data

Variants: 6

#CodeSize (mm)D1 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 SBFD/E02532 (1")11588314M1240.61
Product Drawing
Size (mm) : 32 (1")
D1 (mm) : 115
S1 (mm) : 8
PCD (mm) : 83
n-Ød (mm) : 14
Bolt Size : M12
No Bolts : 4
Weight (kg) : 0.61
2 SBFD/E03240 (1 1/4")12088714M1240.67
Product Drawing
Size (mm) : 40 (1 1/4")
D1 (mm) : 120
S1 (mm) : 8
PCD (mm) : 87
n-Ød (mm) : 14
Bolt Size : M12
No Bolts : 4
Weight (kg) : 0.67
3 SBFD/E04050 (1 1/2")13589814M1240.86
Product Drawing
Size (mm) : 50 (1 1/2")
D1 (mm) : 135
S1 (mm) : 8
PCD (mm) : 98
n-Ød (mm) : 14
Bolt Size : M12
No Bolts : 4
Weight (kg) : 0.86
4 SBFD/E05063 (2")1501011418M1641.31
Product Drawing
Size (mm) : 63 (2")
D1 (mm) : 150
S1 (mm) : 10
PCD (mm) : 114
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.31
5 SBFD/E06575 (2 1/2")1651012718M1641.6
Product Drawing
Size (mm) : 75 (2 1/2")
D1 (mm) : 165
S1 (mm) : 10
PCD (mm) : 127
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.6
6 SBFD/E08090 (3")1851014618M1642.03
Product Drawing
Size (mm) : 90 (3")
D1 (mm) : 185
S1 (mm) : 10
PCD (mm) : 146
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 2.03
Custom Option

Blind Flanges - S/S 316 - Table D

Show full data

Variants: 16

#CodeSize (mm)D1 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 SBFD100110 (4")2151017818M1642.77
Product Drawing
Size (mm) : 110 (4")
D1 (mm) : 215
S1 (mm) : 10
PCD (mm) : 178
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 2.77
2 SBFD125125/140 (5")2551321018M1685.01
Product Drawing
Size (mm) : 125/140 (5")
D1 (mm) : 255
S1 (mm) : 13
PCD (mm) : 210
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 5.01
3 SBFD150160/180 (6")2801323518M1686.08
Product Drawing
Size (mm) : 160/180 (6")
D1 (mm) : 280
S1 (mm) : 13
PCD (mm) : 235
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 6.08
4 SBFD200200 (8")3351329218M1688.79
Product Drawing
Size (mm) : 200 (8")
D1 (mm) : 335
S1 (mm) : 13
PCD (mm) : 292
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 8.79
5 SBFD250250/280 (10")4051635622M20815.81
Product Drawing
Size (mm) : 250/280 (10")
D1 (mm) : 405
S1 (mm) : 16
PCD (mm) : 356
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 15.81
6 SBFD300315 (12")4551940622M201223.59
Product Drawing
Size (mm) : 315 (12")
D1 (mm) : 455
S1 (mm) : 19
PCD (mm) : 406
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 12
Weight (kg) : 23.59
7 SBFD350350 (14")5252247026M241236.31
Product Drawing
Size (mm) : 350 (14")
D1 (mm) : 525
S1 (mm) : 22
PCD (mm) : 470
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 36.31
8 SBFD400400 (16")5802252126M241244.56
Product Drawing
Size (mm) : 400 (16")
D1 (mm) : 580
S1 (mm) : 22
PCD (mm) : 521
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 44.56
9 SBFD450450 (18")6402558426M241261.93
Product Drawing
Size (mm) : 450 (18")
D1 (mm) : 640
S1 (mm) : 25
PCD (mm) : 584
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 61.93
10 SBFD500500 (20")7052964126M241687
Product Drawing
Size (mm) : 500 (20")
D1 (mm) : 705
S1 (mm) : 29
PCD (mm) : 641
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 16
Weight (kg) : 87
11 SBFD550560 (22")7603269930M2716111.38
Product Drawing
Size (mm) : 560 (22")
D1 (mm) : 760
S1 (mm) : 32
PCD (mm) : 699
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 16
Weight (kg) : 111.38
12 SBFD600630 (24")8253275630M2716131.15
Product Drawing
Size (mm) : 630 (24")
D1 (mm) : 825
S1 (mm) : 32
PCD (mm) : 756
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 16
Weight (kg) : 131.15
13 SBFD700710 (28")9103584530M2720174.41
Product Drawing
Size (mm) : 710 (28")
D1 (mm) : 910
S1 (mm) : 35
PCD (mm) : 845
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 20
Weight (kg) : 174.41
14 SBFD800800 (32")10604198536M3320278.13
Product Drawing
Size (mm) : 800 (32")
D1 (mm) : 1060
S1 (mm) : 41
PCD (mm) : 985
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 20
Weight (kg) : 278.13
15 SBFD900900 (36")117548109236M3324400.64
Product Drawing
Size (mm) : 900 (36")
D1 (mm) : 1175
S1 (mm) : 48
PCD (mm) : 1092
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 24
Weight (kg) : 400.64
16 SBFD10001000 (40")125551117536M3324486.61
Product Drawing
Size (mm) : 1000 (40")
D1 (mm) : 1255
S1 (mm) : 51
PCD (mm) : 1175
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 24
Weight (kg) : 486.61
Custom Option

Blind Flanges - S/S 316 - Table E

Show full data

Variants: 16

#CodeSize (mm)D1 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 SBFE100110 (4")2151317818M1683.5
Product Drawing
Size (mm) : 110 (4")
D1 (mm) : 215
S1 (mm) : 13
PCD (mm) : 178
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 3.5
2 SBFE125125/140 (5")2551421018M1685.39
Product Drawing
Size (mm) : 125/140 (5")
D1 (mm) : 255
S1 (mm) : 14
PCD (mm) : 210
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 5.39
3 SBFE150160/180 (6")2801723522M2087.82
Product Drawing
Size (mm) : 160/180 (6")
D1 (mm) : 280
S1 (mm) : 17
PCD (mm) : 235
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 7.82
4 SBFE200200/225 (8")3351929222M20812.7
Product Drawing
Size (mm) : 200/225 (8")
D1 (mm) : 335
S1 (mm) : 19
PCD (mm) : 292
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 12.7
5 SBFE250250/280 (10")4052235622M201221.48
Product Drawing
Size (mm) : 250/280 (10")
D1 (mm) : 405
S1 (mm) : 22
PCD (mm) : 356
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 12
Weight (kg) : 21.48
6 SBFE300315 (12")4552540626M241230.68
Product Drawing
Size (mm) : 315 (12")
D1 (mm) : 455
S1 (mm) : 25
PCD (mm) : 406
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 30.68
7 SBFE350350 (14")5252947026M241247.87
Product Drawing
Size (mm) : 350 (14")
D1 (mm) : 525
S1 (mm) : 29
PCD (mm) : 470
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 47.87
8 SBFE400400 (16")5803252126M241264.82
Product Drawing
Size (mm) : 400 (16")
D1 (mm) : 580
S1 (mm) : 32
PCD (mm) : 521
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 64.82
9 SBFE450450 (18")6403258426M241678.74
Product Drawing
Size (mm) : 450 (18")
D1 (mm) : 640
S1 (mm) : 32
PCD (mm) : 584
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 16
Weight (kg) : 78.74
10 SBFE500500 (20")7053864126M2416114
Product Drawing
Size (mm) : 500 (20")
D1 (mm) : 705
S1 (mm) : 38
PCD (mm) : 641
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 16
Weight (kg) : 114
11 SBFE550560 (22")7604469930M2716153.15
Product Drawing
Size (mm) : 560 (22")
D1 (mm) : 760
S1 (mm) : 44
PCD (mm) : 699
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 16
Weight (kg) : 153.15
12 SBFE600600 (24")8254875633M3016196.73
Product Drawing
Size (mm) : 600 (24")
D1 (mm) : 825
S1 (mm) : 48
PCD (mm) : 756
n-Ød (mm) : 33
Bolt Size : M30
No Bolts : 16
Weight (kg) : 196.73
13 SBFE700710 (28")9105184533M3020254.14
Product Drawing
Size (mm) : 710 (28")
D1 (mm) : 910
S1 (mm) : 51
PCD (mm) : 845
n-Ød (mm) : 33
Bolt Size : M30
No Bolts : 20
Weight (kg) : 254.14
14 SBFE800800 (32")10605498436M3320366.32
Product Drawing
Size (mm) : 800 (32")
D1 (mm) : 1060
S1 (mm) : 54
PCD (mm) : 984
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 20
Weight (kg) : 366.32
15 SBFE900900 (36")117564109236M3324532.23
Product Drawing
Size (mm) : 900 (36")
D1 (mm) : 1175
S1 (mm) : 64
PCD (mm) : 1092
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 24
Weight (kg) : 532.23
16 SBFE10001000 (40")125567117539M3624635.21
Product Drawing
Size (mm) : 1000 (40")
D1 (mm) : 1255
S1 (mm) : 67
PCD (mm) : 1175
n-Ød (mm) : 39
Bolt Size : M36
No Bolts : 24
Weight (kg) : 635.21
Global Water Group (GWG)
  • Together, We Move Water. Global Water Group (GWG) is a leading Australian supplier and solutions provider in the fluid movement and water services industry, with over 40 years experience supporting projects across mining, civil, agriculture, aquaculture and associated sectors.
Sitemap
Locations
Contact GWG

© 2026 Global Water Group (GWG). All rights reserved.
