Backing Rings

  1. Home
  2. Products
  3. PE Fittings & Flanges
  4. Flanges / Backing Rings
  5. Backing Rings
'

Backing Rings

  • Application: Above ground and buried
  • Sealing Integrity: Even load distribution
  • Suitable: Gas, Water, Slurry, Compressed Air and Corrosive systems
Custom Option

Backing Rings - Galvanised - Table D/E

Show full data

Variants: 8

#CodeSize (mm)D1 (mm)D2 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 BFGD/E02020 (1/2")953286714M1240.36

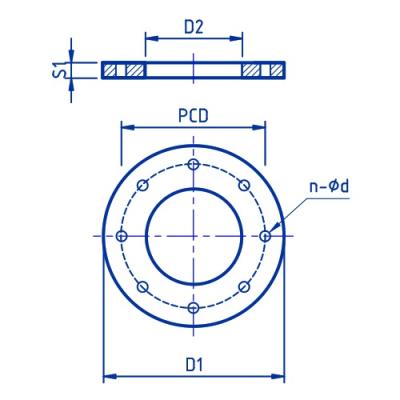

Product Drawing
Size (mm) : 20 (1/2")
D1 (mm) : 95
D2 (mm) : 32
S1 (mm) : 8
PCD (mm) : 67
n-Ød (mm) : 14
Bolt Size : M12
No Bolts : 4
Weight (kg) : 0.36
2 BFGD/E02525 (3/4")1003787314M1240.39
Product Drawing
Size (mm) : 25 (3/4")
D1 (mm) : 100
D2 (mm) : 37
S1 (mm) : 8
PCD (mm) : 73
n-Ød (mm) : 14
Bolt Size : M12
No Bolts : 4
Weight (kg) : 0.39
3 BFGD/E03232 (1")1154488314M1240.52
Product Drawing
Size (mm) : 32 (1")
D1 (mm) : 115
D2 (mm) : 44
S1 (mm) : 8
PCD (mm) : 83
n-Ød (mm) : 14
Bolt Size : M12
No Bolts : 4
Weight (kg) : 0.52
4 BFGD/E04040 (1 1/4")1205288714M1240.54
Product Drawing
Size (mm) : 40 (1 1/4")
D1 (mm) : 120
D2 (mm) : 52
S1 (mm) : 8
PCD (mm) : 87
n-Ød (mm) : 14
Bolt Size : M12
No Bolts : 4
Weight (kg) : 0.54
5 BFGD/E05050 (1 1/2")1356299814M1240.76
Product Drawing
Size (mm) : 50 (1 1/2")
D1 (mm) : 135
D2 (mm) : 62
S1 (mm) : 9
PCD (mm) : 98
n-Ød (mm) : 14
Bolt Size : M12
No Bolts : 4
Weight (kg) : 0.76
6 BFGD/E06363 (2")150781011418M1640.93
Product Drawing
Size (mm) : 63 (2")
D1 (mm) : 150
D2 (mm) : 78
S1 (mm) : 10
PCD (mm) : 114
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 0.93
7 BFGD/E07575 (2 1/2")165921012718M1641.08
Product Drawing
Size (mm) : 75 (2 1/2")
D1 (mm) : 165
D2 (mm) : 92
S1 (mm) : 10
PCD (mm) : 127
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.08
8 BFGD/E09090 (3")1851081214618M1641.58
Product Drawing
Size (mm) : 90 (3")
D1 (mm) : 185
D2 (mm) : 108
S1 (mm) : 12
PCD (mm) : 146
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.58
Custom Option

Backing Rings - Galvanised - Table D

Show full data

Variants: 22

#CodeSize (mm)D1 (mm)D2 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 BFGD110110 (4")2151281017818M1641.76
Product Drawing
Size (mm) : 110 (4")
D1 (mm) : 215
D2 (mm) : 128
S1 (mm) : 10
PCD (mm) : 178
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.76
2 BFGD125125 (5")2551351321018M1681.57
Product Drawing
Size (mm) : 125 (5")
D1 (mm) : 255
D2 (mm) : 135
S1 (mm) : 13
PCD (mm) : 210
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 1.57
3 BFGD1254125 (4")2151401317818M1641.76
Product Drawing
Size (mm) : 125 (4")
D1 (mm) : 215
D2 (mm) : 140
S1 (mm) : 13
PCD (mm) : 178
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.76
4 BFGD140140 (5")2551581321018M1683.01
Product Drawing
Size (mm) : 140 (5")
D1 (mm) : 255
D2 (mm) : 158
S1 (mm) : 13
PCD (mm) : 210
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 3.01
5 BFGD160160 (6")2801781323518M1683.54
Product Drawing
Size (mm) : 160 (6")
D1 (mm) : 280
D2 (mm) : 178
S1 (mm) : 13
PCD (mm) : 235
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 3.54
6 BFGD180180 (6")2801951323518M1683.03
Product Drawing
Size (mm) : 180 (6")
D1 (mm) : 280
D2 (mm) : 195
S1 (mm) : 13
PCD (mm) : 235
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 3.03
7 BFGD200200 (8")3352351329218M1684.36
Product Drawing
Size (mm) : 200 (8")
D1 (mm) : 335
D2 (mm) : 235
S1 (mm) : 13
PCD (mm) : 292
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 4.36
8 BFGD225225 (8")3352401329218M1684.17
Product Drawing
Size (mm) : 225 (8")
D1 (mm) : 335
D2 (mm) : 240
S1 (mm) : 13
PCD (mm) : 292
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 4.17
9 BFGD250250 (10")4052901635622M2087.51
Product Drawing
Size (mm) : 250 (10")
D1 (mm) : 405
D2 (mm) : 290
S1 (mm) : 16
PCD (mm) : 356
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 7.51
10 BFGD280280 (10")4053001635622M2086.93
Product Drawing
Size (mm) : 280 (10")
D1 (mm) : 405
D2 (mm) : 300
S1 (mm) : 16
PCD (mm) : 356
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 6.93
11 BFGD315315 (12")4553451940622M20129.64
Product Drawing
Size (mm) : 315 (12")
D1 (mm) : 455
D2 (mm) : 345
S1 (mm) : 19
PCD (mm) : 406
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 12
Weight (kg) : 9.64
12 BFGD355355 (14")5253762247026M241217.12
Product Drawing
Size (mm) : 355 (14")
D1 (mm) : 525
D2 (mm) : 376
S1 (mm) : 22
PCD (mm) : 470
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 17.12
13 BFGD400400 (16")5804302252126M241219.46
Product Drawing
Size (mm) : 400 (16")
D1 (mm) : 580
D2 (mm) : 430
S1 (mm) : 22
PCD (mm) : 521
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 19.46
14 BFGD450450 (18")6404802558426M241226.39
Product Drawing
Size (mm) : 450 (18")
D1 (mm) : 640
D2 (mm) : 480
S1 (mm) : 25
PCD (mm) : 584
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 26.39
15 BFGD500500 (20")7055332964126M241636.17
Product Drawing
Size (mm) : 500 (20")
D1 (mm) : 705
D2 (mm) : 533
S1 (mm) : 29
PCD (mm) : 641
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 16
Weight (kg) : 36.17
16 BFGD560560 (22")7605903269930M271642.47
Product Drawing
Size (mm) : 560 (22")
D1 (mm) : 760
D2 (mm) : 590
S1 (mm) : 32
PCD (mm) : 699
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 16
Weight (kg) : 42.47
17 BFGD630630 (24")8256603275630M271645.53
Product Drawing
Size (mm) : 630 (24")
D1 (mm) : 825
D2 (mm) : 660
S1 (mm) : 32
PCD (mm) : 756
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 16
Weight (kg) : 45.53
18 BFGD710710 (28")9107453584530M272055.08
Product Drawing
Size (mm) : 710 (28")
D1 (mm) : 910
D2 (mm) : 745
S1 (mm) : 35
PCD (mm) : 845
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 20
Weight (kg) : 55.08
19 BFGD800800 (32")10608354198536M3320101.3
Product Drawing
Size (mm) : 800 (32")
D1 (mm) : 1060
D2 (mm) : 835
S1 (mm) : 41
PCD (mm) : 985
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 20
Weight (kg) : 101.3
20 BFGD900900 (36")117598448109236M3324132.6
Product Drawing
Size (mm) : 900 (36")
D1 (mm) : 1175
D2 (mm) : 984
S1 (mm) : 48
PCD (mm) : 1092
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 24
Weight (kg) : 132.6
21 BFGD10001000 (40")1255103551117536M3324148.98
Product Drawing
Size (mm) : 1000 (40")
D1 (mm) : 1255
D2 (mm) : 1035
S1 (mm) : 51
PCD (mm) : 1175
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 24
Weight (kg) : 148.98
22 BFGD12001200 (48")1490124060141036M3332
Product Drawing
Size (mm) : 1200 (48")
D1 (mm) : 1490
D2 (mm) : 1240
S1 (mm) : 60
PCD (mm) : 1410
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 32
Weight (kg) :
Custom Option

Backing Rings - Galvanised - Table E

Show full data

Variants: 21

#CodeSize (mm)D1 (mm)D2 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 BFGE110110 (4")2151281317818M1682.19
Product Drawing
Size (mm) : 110 (4")
D1 (mm) : 215
D2 (mm) : 128
S1 (mm) : 13
PCD (mm) : 178
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 2.19
2 BFGE125125 (5")2551351421018M1683.7
Product Drawing
Size (mm) : 125 (5")
D1 (mm) : 255
D2 (mm) : 135
S1 (mm) : 14
PCD (mm) : 210
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 3.7
3 BFGE1254125 (4")2151401317818M1682.04
Product Drawing
Size (mm) : 125 (4")
D1 (mm) : 215
D2 (mm) : 140
S1 (mm) : 13
PCD (mm) : 178
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 2.04
4 BFGE140140 (5")2551581421018M1683.23
Product Drawing
Size (mm) : 140 (5")
D1 (mm) : 255
D2 (mm) : 158
S1 (mm) : 14
PCD (mm) : 210
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 3.23
5 BFGE160160 (6")2801781723522M2084.49
Product Drawing
Size (mm) : 160 (6")
D1 (mm) : 280
D2 (mm) : 178
S1 (mm) : 17
PCD (mm) : 235
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 4.49
6 BFGE180180 (6")2801951723522M2083.84
Product Drawing
Size (mm) : 180 (6")
D1 (mm) : 280
D2 (mm) : 195
S1 (mm) : 17
PCD (mm) : 235
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 3.84
7 BFGE200200 (8")3352351929222M2086.23
Product Drawing
Size (mm) : 200 (8")
D1 (mm) : 335
D2 (mm) : 235
S1 (mm) : 19
PCD (mm) : 292
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 6.23
8 BFGE225225 (8")3352401929222M2085.95
Product Drawing
Size (mm) : 225 (8")
D1 (mm) : 335
D2 (mm) : 240
S1 (mm) : 19
PCD (mm) : 292
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 5.95
9 BFGE250250 (10")4052902235622M201210.06
Product Drawing
Size (mm) : 250 (10")
D1 (mm) : 405
D2 (mm) : 290
S1 (mm) : 22
PCD (mm) : 356
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 12
Weight (kg) : 10.06
10 BFGE280280 (10")4053002235622M20129.26
Product Drawing
Size (mm) : 280 (10")
D1 (mm) : 405
D2 (mm) : 300
S1 (mm) : 22
PCD (mm) : 356
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 12
Weight (kg) : 9.26
11 BFGE315315 (12")4553452540626M241212.32
Product Drawing
Size (mm) : 315 (12")
D1 (mm) : 455
D2 (mm) : 345
S1 (mm) : 25
PCD (mm) : 406
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 12.32
12 BFGE355355 (14")5253762947026M241222.57
Product Drawing
Size (mm) : 355 (14")
D1 (mm) : 525
D2 (mm) : 376
S1 (mm) : 29
PCD (mm) : 470
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 22.57
13 BFGE400400 (16")5804303252126M241228.31
Product Drawing
Size (mm) : 400 (16")
D1 (mm) : 580
D2 (mm) : 430
S1 (mm) : 32
PCD (mm) : 521
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 28.31
14 BFGE450450 (18")6404803258426M241633.25
Product Drawing
Size (mm) : 450 (18")
D1 (mm) : 640
D2 (mm) : 480
S1 (mm) : 32
PCD (mm) : 584
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 16
Weight (kg) : 33.25
15 BFGE500500 (20")7055333864126M241647.39
Product Drawing
Size (mm) : 500 (20")
D1 (mm) : 705
D2 (mm) : 533
S1 (mm) : 38
PCD (mm) : 641
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 16
Weight (kg) : 47.39
16 BFGE560560 (22")7605904469930M271658.4
Product Drawing
Size (mm) : 560 (22")
D1 (mm) : 760
D2 (mm) : 590
S1 (mm) : 44
PCD (mm) : 699
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 16
Weight (kg) : 58.4
17 BFGE630630 (24")8256604875633M301667.36
Product Drawing
Size (mm) : 630 (24")
D1 (mm) : 825
D2 (mm) : 660
S1 (mm) : 48
PCD (mm) : 756
n-Ød (mm) : 33
Bolt Size : M30
No Bolts : 16
Weight (kg) : 67.36
18 BFGE710710 (28")9107455184533M302079.07
Product Drawing
Size (mm) : 710 (28")
D1 (mm) : 910
D2 (mm) : 745
S1 (mm) : 51
PCD (mm) : 845
n-Ød (mm) : 33
Bolt Size : M30
No Bolts : 20
Weight (kg) : 79.07
19 BFGE800800 (32")10608355498436M3320133.42
Product Drawing
Size (mm) : 800 (32")
D1 (mm) : 1060
D2 (mm) : 835
S1 (mm) : 54
PCD (mm) : 984
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 20
Weight (kg) : 133.42
20 BFGE900900 (36")117595064109236M3324176.81
Product Drawing
Size (mm) : 900 (36")
D1 (mm) : 1175
D2 (mm) : 950
S1 (mm) : 64
PCD (mm) : 1092
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 24
Weight (kg) : 176.81
21 BFGE10001000 (40")1255103567117539M3624192.49
Product Drawing
Size (mm) : 1000 (40")
D1 (mm) : 1255
D2 (mm) : 1035
S1 (mm) : 67
PCD (mm) : 1175
n-Ød (mm) : 39
Bolt Size : M36
No Bolts : 24
Weight (kg) : 192.49
Custom Option

Backing Rings - Galvanised - DIN

Show full data

Variants: 17

#CodeSize (mm)D1 (mm)D2 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 BFGDIN1603232 (1")11544128514M1640.78
Product Drawing
Size (mm) : 32 (1")
D1 (mm) : 115
D2 (mm) : 44
S1 (mm) : 12
PCD (mm) : 85
n-Ød (mm) : 14
Bolt Size : M16
No Bolts : 4
Weight (kg) : 0.78
2 BFGDIN1604040 (1 1/4")140521410018M1641.35
Product Drawing
Size (mm) : 40 (1 1/4")
D1 (mm) : 140
D2 (mm) : 52
S1 (mm) : 14
PCD (mm) : 100
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.35
3 BFGDIN1605050 (1 1/2")150621411018M1641.5
Product Drawing
Size (mm) : 50 (1 1/2")
D1 (mm) : 150
D2 (mm) : 62
S1 (mm) : 14
PCD (mm) : 110
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.5
4 BFGDIN1606363 (2")165781612518M1641.96
Product Drawing
Size (mm) : 63 (2")
D1 (mm) : 165
D2 (mm) : 78
S1 (mm) : 16
PCD (mm) : 125
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.96
5 BFGDIN1607575 (2 1/2")185921614518M1682.29
Product Drawing
Size (mm) : 75 (2 1/2")
D1 (mm) : 185
D2 (mm) : 92
S1 (mm) : 16
PCD (mm) : 145
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 2.29
6 BFGDIN1609090 (3")2001081816018M1682.86
Product Drawing
Size (mm) : 90 (3")
D1 (mm) : 200
D2 (mm) : 108
S1 (mm) : 18
PCD (mm) : 160
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 2.86
7 BFGDIN16110110 (4")2201281818018M1683.27
Product Drawing
Size (mm) : 110 (4")
D1 (mm) : 220
D2 (mm) : 128
S1 (mm) : 18
PCD (mm) : 180
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 3.27
8 BFGDIN16125125 (5")2501402521018M1686.23
Product Drawing
Size (mm) : 125 (5")
D1 (mm) : 250
D2 (mm) : 140
S1 (mm) : 25
PCD (mm) : 210
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 6.23
9 BFGDIN161254125 (4")2201401818018M1682.92
Product Drawing
Size (mm) : 125 (4")
D1 (mm) : 220
D2 (mm) : 140
S1 (mm) : 18
PCD (mm) : 180
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 2.92
10 BFGDIN16140140 (5")2501581821018M1683.89
Product Drawing
Size (mm) : 140 (5")
D1 (mm) : 250
D2 (mm) : 158
S1 (mm) : 18
PCD (mm) : 210
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 3.89
11 BFGDIN16160160 (6")2851782024022M2085.64
Product Drawing
Size (mm) : 160 (6")
D1 (mm) : 285
D2 (mm) : 178
S1 (mm) : 20
PCD (mm) : 240
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 5.64
12 BFGDIN16180180 (6")2851952024022M2084.86
Product Drawing
Size (mm) : 180 (6")
D1 (mm) : 285
D2 (mm) : 195
S1 (mm) : 20
PCD (mm) : 240
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 4.86
13 BFGDIN16200200 (8")3402352429522M20128.09
Product Drawing
Size (mm) : 200 (8")
D1 (mm) : 340
D2 (mm) : 235
S1 (mm) : 24
PCD (mm) : 295
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 12
Weight (kg) : 8.09
14 BFGDIN16225225 (8")3402402429522M20127.74
Product Drawing
Size (mm) : 225 (8")
D1 (mm) : 340
D2 (mm) : 240
S1 (mm) : 24
PCD (mm) : 295
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 12
Weight (kg) : 7.74
15 BFGDIN16250250 (10")4052903035526M241213.31
Product Drawing
Size (mm) : 250 (10")
D1 (mm) : 405
D2 (mm) : 290
S1 (mm) : 30
PCD (mm) : 355
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 13.31
16 BFGDIN16280280 (10")4053003035526M241212.22
Product Drawing
Size (mm) : 280 (10")
D1 (mm) : 405
D2 (mm) : 300
S1 (mm) : 30
PCD (mm) : 355
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 12.22
17 BFGDIN16315315 (12")4603453441026M241217.75
Product Drawing
Size (mm) : 315 (12")
D1 (mm) : 460
D2 (mm) : 345
S1 (mm) : 34
PCD (mm) : 410
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 17.75
Custom Option

Backing Rings - Galvanised - ANSI 150 - PN16

Show full data

Variants: 29

#CodeSize (mm)D1 (mm)D2 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 BFGA02020 (1/2")9032860.5161/2"40.3
Product Drawing
Size (mm) : 20 (1/2")
D1 (mm) : 90
D2 (mm) : 32
S1 (mm) : 8
PCD (mm) : 60.5
n-Ød (mm) : 16
Bolt Size : 1/2"
No Bolts : 4
Weight (kg) : 0.3
2 BFGA02525 (3/4")9837870161/2"40.36
Product Drawing
Size (mm) : 25 (3/4")
D1 (mm) : 98
D2 (mm) : 37
S1 (mm) : 8
PCD (mm) : 70
n-Ød (mm) : 16
Bolt Size : 1/2"
No Bolts : 4
Weight (kg) : 0.36
3 BFGA03232 (1")10844879.5161/2"40.43
Product Drawing
Size (mm) : 32 (1")
D1 (mm) : 108
D2 (mm) : 44
S1 (mm) : 8
PCD (mm) : 79.5
n-Ød (mm) : 16
Bolt Size : 1/2"
No Bolts : 4
Weight (kg) : 0.43
4 BFGA04040 (1 1/4")11752889161/2"40.49
Product Drawing
Size (mm) : 40 (1 1/4")
D1 (mm) : 117
D2 (mm) : 52
S1 (mm) : 8
PCD (mm) : 89
n-Ød (mm) : 16
Bolt Size : 1/2"
No Bolts : 4
Weight (kg) : 0.49
5 BFGA05050 (1 1/2")127621098.5161/2"40.69
Product Drawing
Size (mm) : 50 (1 1/2")
D1 (mm) : 127
D2 (mm) : 62
S1 (mm) : 10
PCD (mm) : 98.5
n-Ød (mm) : 16
Bolt Size : 1/2"
No Bolts : 4
Weight (kg) : 0.69
6 BFGA06363 (2")1527810120.5205/8"40.95
Product Drawing
Size (mm) : 63 (2")
D1 (mm) : 152
D2 (mm) : 78
S1 (mm) : 10
PCD (mm) : 120.5
n-Ød (mm) : 20
Bolt Size : 5/8"
No Bolts : 4
Weight (kg) : 0.95
7 BFGA07575 (2 1/2")1789210139.5205/8"41.33
Product Drawing
Size (mm) : 75 (2 1/2")
D1 (mm) : 178
D2 (mm) : 92
S1 (mm) : 10
PCD (mm) : 139.5
n-Ød (mm) : 20
Bolt Size : 5/8"
No Bolts : 4
Weight (kg) : 1.33
8 BFGA09090 (3")19110812152205/8"41.72
Product Drawing
Size (mm) : 90 (3")
D1 (mm) : 191
D2 (mm) : 108
S1 (mm) : 12
PCD (mm) : 152
n-Ød (mm) : 20
Bolt Size : 5/8"
No Bolts : 4
Weight (kg) : 1.72
9 BFGA110110 (4")22912812190.5205/8"82.43
Product Drawing
Size (mm) : 110 (4")
D1 (mm) : 229
D2 (mm) : 128
S1 (mm) : 12
PCD (mm) : 190.5
n-Ød (mm) : 20
Bolt Size : 5/8"
No Bolts : 8
Weight (kg) : 2.43
10 BFGA125125 (5")25413516216233/4"84.02
Product Drawing
Size (mm) : 125 (5")
D1 (mm) : 254
D2 (mm) : 135
S1 (mm) : 16
PCD (mm) : 216
n-Ød (mm) : 23
Bolt Size : 3/4"
No Bolts : 8
Weight (kg) : 4.02
11 BFGA1254125 (4")23014022190.5205/8"84.02
Product Drawing
Size (mm) : 125 (4")
D1 (mm) : 230
D2 (mm) : 140
S1 (mm) : 22
PCD (mm) : 190.5
n-Ød (mm) : 20
Bolt Size : 5/8"
No Bolts : 8
Weight (kg) : 4.02
12 BFGA140140 (5")25415816216233/4"83.49
Product Drawing
Size (mm) : 140 (5")
D1 (mm) : 254
D2 (mm) : 158
S1 (mm) : 16
PCD (mm) : 216
n-Ød (mm) : 23
Bolt Size : 3/4"
No Bolts : 8
Weight (kg) : 3.49
13 BFGA160160 (6")27917816241233/4"84.14
Product Drawing
Size (mm) : 160 (6")
D1 (mm) : 279
D2 (mm) : 178
S1 (mm) : 16
PCD (mm) : 241
n-Ød (mm) : 23
Bolt Size : 3/4"
No Bolts : 8
Weight (kg) : 4.14
14 BFGA180180 (8")27919516241233/4"83.51
Product Drawing
Size (mm) : 180 (8")
D1 (mm) : 279
D2 (mm) : 195
S1 (mm) : 16
PCD (mm) : 241
n-Ød (mm) : 23
Bolt Size : 3/4"
No Bolts : 8
Weight (kg) : 3.51
15 BFGA200200 (8")34323520298.5233/4"87.18
Product Drawing
Size (mm) : 200 (8")
D1 (mm) : 343
D2 (mm) : 235
S1 (mm) : 20
PCD (mm) : 298.5
n-Ød (mm) : 23
Bolt Size : 3/4"
No Bolts : 8
Weight (kg) : 7.18
16 BFGA225225 (8")34324020298.5233/4"86.89
Product Drawing
Size (mm) : 225 (8")
D1 (mm) : 343
D2 (mm) : 240
S1 (mm) : 20
PCD (mm) : 298.5
n-Ød (mm) : 23
Bolt Size : 3/4"
No Bolts : 8
Weight (kg) : 6.89
17 BFGA250250 (10")40629020362267/8"128.96
Product Drawing
Size (mm) : 250 (10")
D1 (mm) : 406
D2 (mm) : 290
S1 (mm) : 20
PCD (mm) : 362
n-Ød (mm) : 26
Bolt Size : 7/8"
No Bolts : 12
Weight (kg) : 8.96
18 BFGA280280 (10")40630020362267/8"128.23
Product Drawing
Size (mm) : 280 (10")
D1 (mm) : 406
D2 (mm) : 300
S1 (mm) : 20
PCD (mm) : 362
n-Ød (mm) : 26
Bolt Size : 7/8"
No Bolts : 12
Weight (kg) : 8.23
19 BFGA315315 (12")48334525432267/8"1216.37
Product Drawing
Size (mm) : 315 (12")
D1 (mm) : 483
D2 (mm) : 345
S1 (mm) : 25
PCD (mm) : 432
n-Ød (mm) : 26
Bolt Size : 7/8"
No Bolts : 12
Weight (kg) : 16.37
20 BFGA355355 (14")53537628476291"1223.28
Product Drawing
Size (mm) : 355 (14")
D1 (mm) : 535
D2 (mm) : 376
S1 (mm) : 28
PCD (mm) : 476
n-Ød (mm) : 29
Bolt Size : 1"
No Bolts : 12
Weight (kg) : 23.28
21 BFGA400400 (16")60043032540291"1631.91
Product Drawing
Size (mm) : 400 (16")
D1 (mm) : 600
D2 (mm) : 430
S1 (mm) : 32
PCD (mm) : 540
n-Ød (mm) : 29
Bolt Size : 1"
No Bolts : 16
Weight (kg) : 31.91
22 BFGA450450 (18")63548036578321 1/8"1634.8
Product Drawing
Size (mm) : 450 (18")
D1 (mm) : 635
D2 (mm) : 480
S1 (mm) : 36
PCD (mm) : 578
n-Ød (mm) : 32
Bolt Size : 1 1/8"
No Bolts : 16
Weight (kg) : 34.8
23 BFGA500500 (20")70053340635321 1/8"2045.84
Product Drawing
Size (mm) : 500 (20")
D1 (mm) : 700
D2 (mm) : 533
S1 (mm) : 40
PCD (mm) : 635
n-Ød (mm) : 32
Bolt Size : 1 1/8"
No Bolts : 20
Weight (kg) : 45.84
24 BFGA560560 (22")75059046692351 1/4"2053.98
Product Drawing
Size (mm) : 560 (22")
D1 (mm) : 750
D2 (mm) : 590
S1 (mm) : 46
PCD (mm) : 692
n-Ød (mm) : 35
Bolt Size : 1 1/4"
No Bolts : 20
Weight (kg) : 53.98
25 BFGA630630 (24")81366050749351 1/4"2061.97
Product Drawing
Size (mm) : 630 (24")
D1 (mm) : 813
D2 (mm) : 660
S1 (mm) : 50
PCD (mm) : 749
n-Ød (mm) : 35
Bolt Size : 1 1/4"
No Bolts : 20
Weight (kg) : 61.97
26 BFGA710710 (28")92774571863.5351 1/4"2883.43
Product Drawing
Size (mm) : 710 (28")
D1 (mm) : 927
D2 (mm) : 745
S1 (mm) : 71
PCD (mm) : 863.5
n-Ød (mm) : 35
Bolt Size : 1 1/4"
No Bolts : 28
Weight (kg) : 83.43
27 BFGA800800 (32")106083581978411 1/2"28117.21
Product Drawing
Size (mm) : 800 (32")
D1 (mm) : 1060
D2 (mm) : 835
S1 (mm) : 81
PCD (mm) : 978
n-Ød (mm) : 41
Bolt Size : 1 1/2"
No Bolts : 28
Weight (kg) : 117.21
28 BFGA900900 (36")1170950901085.8411 1/2"32237.09
Product Drawing
Size (mm) : 900 (36")
D1 (mm) : 1170
D2 (mm) : 950
S1 (mm) : 90
PCD (mm) : 1085.8
n-Ød (mm) : 41
Bolt Size : 1 1/2"
No Bolts : 32
Weight (kg) : 237.09
29 BFGA10001000 (40")12901030901124411 1/2"36301.84
Product Drawing
Size (mm) : 1000 (40")
D1 (mm) : 1290
D2 (mm) : 1030
S1 (mm) : 90
PCD (mm) : 1124
n-Ød (mm) : 41
Bolt Size : 1 1/2"
No Bolts : 36
Weight (kg) : 301.84
Custom Option

Backing Rings - Galvanised - PN16

Show full data

Variants: 22

#CodeSize (mm)D1 (mm)D2 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 BFG1606363 (2")150781111418M1641.03
Product Drawing
Size (mm) : 63 (2")
D1 (mm) : 150
D2 (mm) : 78
S1 (mm) : 11
PCD (mm) : 114
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.03
2 BFG1607575 (2 1/2")165921112718M1641.19
Product Drawing
Size (mm) : 75 (2 1/2")
D1 (mm) : 165
D2 (mm) : 92
S1 (mm) : 11
PCD (mm) : 127
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.19
3 BFG1609090 (3")1851081114618M1641.45
Product Drawing
Size (mm) : 90 (3")
D1 (mm) : 185
D2 (mm) : 108
S1 (mm) : 11
PCD (mm) : 146
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.45
4 BFG16110110 (4")2151281317818M1642.29
Product Drawing
Size (mm) : 110 (4")
D1 (mm) : 215
D2 (mm) : 128
S1 (mm) : 13
PCD (mm) : 178
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 2.29
5 BFG16160160 (6")2801781323518M1683.54
Product Drawing
Size (mm) : 160 (6")
D1 (mm) : 280
D2 (mm) : 178
S1 (mm) : 13
PCD (mm) : 235
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 3.54
6 BFG16180180 (6")2801951323518M1683.03
Product Drawing
Size (mm) : 180 (6")
D1 (mm) : 280
D2 (mm) : 195
S1 (mm) : 13
PCD (mm) : 235
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 3.03
7 BFG16200200 (8")3352351929218M1686.38
Product Drawing
Size (mm) : 200 (8")
D1 (mm) : 335
D2 (mm) : 235
S1 (mm) : 19
PCD (mm) : 292
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 6.38
8 BFG16225225 (8")3352381929218M1686.21
Product Drawing
Size (mm) : 225 (8")
D1 (mm) : 335
D2 (mm) : 238
S1 (mm) : 19
PCD (mm) : 292
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 6.21
9 BFG16225-9225 (9")3702381932418M1689.09
Product Drawing
Size (mm) : 225 (9")
D1 (mm) : 370
D2 (mm) : 238
S1 (mm) : 19
PCD (mm) : 324
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 9.09
10 BFG16250250 (10")4052881935622M2089.05
Product Drawing
Size (mm) : 250 (10")
D1 (mm) : 405
D2 (mm) : 288
S1 (mm) : 19
PCD (mm) : 356
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 9.05
11 BFG16280280 (10")4053001935622M2088.22
Product Drawing
Size (mm) : 280 (10")
D1 (mm) : 405
D2 (mm) : 300
S1 (mm) : 19
PCD (mm) : 356
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 8.22
12 BFG16315315 (12")4553382340622M201212.34
Product Drawing
Size (mm) : 315 (12")
D1 (mm) : 455
D2 (mm) : 338
S1 (mm) : 23
PCD (mm) : 406
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 12
Weight (kg) : 12.34
13 BFG16355355 (14")5253763047026M241223.35
Product Drawing
Size (mm) : 355 (14")
D1 (mm) : 525
D2 (mm) : 376
S1 (mm) : 30
PCD (mm) : 470
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 23.35
14 BFG16400400 (16")5804303052126M241221.19
Product Drawing
Size (mm) : 400 (16")
D1 (mm) : 580
D2 (mm) : 430
S1 (mm) : 30
PCD (mm) : 521
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 21.19
15 BFG16450450 (18")6404703058426M241233.43
Product Drawing
Size (mm) : 450 (18")
D1 (mm) : 640
D2 (mm) : 470
S1 (mm) : 30
PCD (mm) : 584
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 33.43
16 BFG16500500 (20")7055333864126M241647.39
Product Drawing
Size (mm) : 500 (20")
D1 (mm) : 705
D2 (mm) : 533
S1 (mm) : 38
PCD (mm) : 641
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 16
Weight (kg) : 47.39
17 BFG16560560 (22")7605904669930M271660.5
Product Drawing
Size (mm) : 560 (22")
D1 (mm) : 760
D2 (mm) : 590
S1 (mm) : 46
PCD (mm) : 699
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 16
Weight (kg) : 60.5
18 BFG16630630 (24")8256454875630M271668.41
Product Drawing
Size (mm) : 630 (24")
D1 (mm) : 825
D2 (mm) : 645
S1 (mm) : 48
PCD (mm) : 756
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 16
Weight (kg) : 68.41
19 BFG16710710 (28")9107405684530M272088.28
Product Drawing
Size (mm) : 710 (28")
D1 (mm) : 910
D2 (mm) : 740
S1 (mm) : 56
PCD (mm) : 845
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 20
Weight (kg) : 88.28
20 BFG16800800 (32")10608435698436M3320138.59
Product Drawing
Size (mm) : 800 (32")
D1 (mm) : 1060
D2 (mm) : 843
S1 (mm) : 56
PCD (mm) : 984
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 20
Weight (kg) : 138.59
21 BFG16900900 (36")117594766109236M3324182.33
Product Drawing
Size (mm) : 900 (36")
D1 (mm) : 1175
D2 (mm) : 947
S1 (mm) : 66
PCD (mm) : 1092
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 24
Weight (kg) : 182.33
22 BFG1610001000 (40")1255105066117536M3324192.8
Product Drawing
Size (mm) : 1000 (40")
D1 (mm) : 1255
D2 (mm) : 1050
S1 (mm) : 66
PCD (mm) : 1175
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 24
Weight (kg) : 192.8
Custom Option

Backing Rings - Galvanised - PN21

Show full data

Variants: 20

#CodeSize (mm)D1 (mm)D2 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 BFG2106363 (2")165781512718M1641.84
Product Drawing
Size (mm) : 63 (2")
D1 (mm) : 165
D2 (mm) : 78
S1 (mm) : 15
PCD (mm) : 127
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.84
2 BFG2107575 (2 1/2")185921514618M1682.14
Product Drawing
Size (mm) : 75 (2 1/2")
D1 (mm) : 185
D2 (mm) : 92
S1 (mm) : 15
PCD (mm) : 146
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 2.14
3 BFG2109090 (3")2051081516518M1682.57
Product Drawing
Size (mm) : 90 (3")
D1 (mm) : 205
D2 (mm) : 108
S1 (mm) : 15
PCD (mm) : 165
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 2.57
4 BFG21110110 (4")2301281919118M1683.98
Product Drawing
Size (mm) : 110 (4")
D1 (mm) : 230
D2 (mm) : 128
S1 (mm) : 19
PCD (mm) : 191
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 3.98
5 BFG21160160 (6")3051782426022M20128.22
Product Drawing
Size (mm) : 160 (6")
D1 (mm) : 305
D2 (mm) : 178
S1 (mm) : 24
PCD (mm) : 260
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 12
Weight (kg) : 8.22
6 BFG21180180 (6")3051952426022M20127.28
Product Drawing
Size (mm) : 180 (6")
D1 (mm) : 305
D2 (mm) : 195
S1 (mm) : 24
PCD (mm) : 260
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 12
Weight (kg) : 7.28
7 BFG21200200 (8")3702352432422M201211.23
Product Drawing
Size (mm) : 200 (8")
D1 (mm) : 370
D2 (mm) : 235
S1 (mm) : 24
PCD (mm) : 324
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 12
Weight (kg) : 11.23
8 BFG21225225 (8")3702382432422M201211.02
Product Drawing
Size (mm) : 225 (8")
D1 (mm) : 370
D2 (mm) : 238
S1 (mm) : 24
PCD (mm) : 324
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 12
Weight (kg) : 11.02
9 BFG21250250 (10")4302903038126M241217.16
Product Drawing
Size (mm) : 250 (10")
D1 (mm) : 430
D2 (mm) : 290
S1 (mm) : 30
PCD (mm) : 381
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 17.16
10 BFG21280280 (10")4303003038126M241216.06
Product Drawing
Size (mm) : 280 (10")
D1 (mm) : 430
D2 (mm) : 300
S1 (mm) : 30
PCD (mm) : 381
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 16.06
11 BFG21315315 (12")4903453043826M241620.41
Product Drawing
Size (mm) : 315 (12")
D1 (mm) : 490
D2 (mm) : 345
S1 (mm) : 30
PCD (mm) : 438
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 16
Weight (kg) : 20.41
12 BFG21355355 (14")5503763049530M271627.16
Product Drawing
Size (mm) : 355 (14")
D1 (mm) : 550
D2 (mm) : 376
S1 (mm) : 30
PCD (mm) : 495
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 16
Weight (kg) : 27.16
13 BFG21400400 (16")6104303855230M272039.67
Product Drawing
Size (mm) : 400 (16")
D1 (mm) : 610
D2 (mm) : 430
S1 (mm) : 38
PCD (mm) : 552
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 20
Weight (kg) : 39.67
14 BFG21450450 (18")6754803861033M302047.7
Product Drawing
Size (mm) : 450 (18")
D1 (mm) : 675
D2 (mm) : 480
S1 (mm) : 38
PCD (mm) : 610
n-Ød (mm) : 33
Bolt Size : M30
No Bolts : 20
Weight (kg) : 47.7
15 BFG21500500 (20")7355334867333M302468.12
Product Drawing
Size (mm) : 500 (20")
D1 (mm) : 735
D2 (mm) : 533
S1 (mm) : 48
PCD (mm) : 673
n-Ød (mm) : 33
Bolt Size : M30
No Bolts : 24
Weight (kg) : 68.12
16 BFG21560560 (22")7355904867333M302449.16
Product Drawing
Size (mm) : 560 (22")
D1 (mm) : 735
D2 (mm) : 590
S1 (mm) : 48
PCD (mm) : 673
n-Ød (mm) : 33
Bolt Size : M30
No Bolts : 24
Weight (kg) : 49.16
17 BFG21630630 (24")8506605878136M332491.54
Product Drawing
Size (mm) : 630 (24")
D1 (mm) : 850
D2 (mm) : 660
S1 (mm) : 58
PCD (mm) : 781
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 24
Weight (kg) : 91.54
18 BFG21710710 (28")9357405885736M3324
Product Drawing
Size (mm) : 710 (28")
D1 (mm) : 935
D2 (mm) : 740
S1 (mm) : 58
PCD (mm) : 857
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 24
Weight (kg) :
19 BFG21800800 (32")10608436898436M3328
Product Drawing
Size (mm) : 800 (32")
D1 (mm) : 1060
D2 (mm) : 843
S1 (mm) : 68
PCD (mm) : 984
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 28
Weight (kg) :
20 BFG21900900 (36")118594768110539M3632
Product Drawing
Size (mm) : 900 (36")
D1 (mm) : 1185
D2 (mm) : 947
S1 (mm) : 68
PCD (mm) : 1105
n-Ød (mm) : 39
Bolt Size : M36
No Bolts : 32
Weight (kg) :
Custom Option

Backing Rings - S/S 316 - PN16

Show full data

Variants: 23

#CodeSize (mm)D1 (mm)D2 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 BFS3161606363 (2")150781111418M1641.03
Product Drawing
Size (mm) : 63 (2")
D1 (mm) : 150
D2 (mm) : 78
S1 (mm) : 11
PCD (mm) : 114
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.03
2 BFS3161607575 (2 1/2")165921112718M1641.19
Product Drawing
Size (mm) : 75 (2 1/2")
D1 (mm) : 165
D2 (mm) : 92
S1 (mm) : 11
PCD (mm) : 127
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.19
3 BFS3161609090 (3")1851081114618M1641.45
Product Drawing
Size (mm) : 90 (3")
D1 (mm) : 185
D2 (mm) : 108
S1 (mm) : 11
PCD (mm) : 146
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.45
4 BFS31616110110 (4")2151281317818M1642.29
Product Drawing
Size (mm) : 110 (4")
D1 (mm) : 215
D2 (mm) : 128
S1 (mm) : 13
PCD (mm) : 178
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 2.29
5 BFS31616125125 (5")2551401321018M1682.03
Product Drawing
Size (mm) : 125 (5")
D1 (mm) : 255
D2 (mm) : 140
S1 (mm) : 13
PCD (mm) : 210
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 2.03
6 BFS316161254125 (4")2151401317818M1642.03
Product Drawing
Size (mm) : 125 (4")
D1 (mm) : 215
D2 (mm) : 140
S1 (mm) : 13
PCD (mm) : 178
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 2.03
7 BFS31616160160 (6")2801781323518M1683.54
Product Drawing
Size (mm) : 160 (6")
D1 (mm) : 280
D2 (mm) : 178
S1 (mm) : 13
PCD (mm) : 235
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 3.54
8 BFS31616180180 (6")2801951323518M1683.03
Product Drawing
Size (mm) : 180 (6")
D1 (mm) : 280
D2 (mm) : 195
S1 (mm) : 13
PCD (mm) : 235
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 3.03
9 BFS31616200200 (8")3352351929218M1686.38
Product Drawing
Size (mm) : 200 (8")
D1 (mm) : 335
D2 (mm) : 235
S1 (mm) : 19
PCD (mm) : 292
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 6.38
10 BFS31616225225 (8")3352351929218M1686.21
Product Drawing
Size (mm) : 225 (8")
D1 (mm) : 335
D2 (mm) : 235
S1 (mm) : 19
PCD (mm) : 292
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 6.21
11 BFS31616250250 (10")4052881935622M2089.05
Product Drawing
Size (mm) : 250 (10")
D1 (mm) : 405
D2 (mm) : 288
S1 (mm) : 19
PCD (mm) : 356
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 9.05
12 BFS31616280280 (10")4053001935622M2088.22
Product Drawing
Size (mm) : 280 (10")
D1 (mm) : 405
D2 (mm) : 300
S1 (mm) : 19
PCD (mm) : 356
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 8.22
13 BFS31616315315 (12")4553382340622M201212.34
Product Drawing
Size (mm) : 315 (12")
D1 (mm) : 455
D2 (mm) : 338
S1 (mm) : 23
PCD (mm) : 406
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 12
Weight (kg) : 12.34
14 BFS31616355355 (14")5253763047026M241223.35
Product Drawing
Size (mm) : 355 (14")
D1 (mm) : 525
D2 (mm) : 376
S1 (mm) : 30
PCD (mm) : 470
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 23.35
15 BFS31616400400 (16")5804303052126M241226.54
Product Drawing
Size (mm) : 400 (16")
D1 (mm) : 580
D2 (mm) : 430
S1 (mm) : 30
PCD (mm) : 521
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 26.54
16 BFS31616450450 (18")6404703058426M241233.43
Product Drawing
Size (mm) : 450 (18")
D1 (mm) : 640
D2 (mm) : 470
S1 (mm) : 30
PCD (mm) : 584
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 33.43
17 BFS31616500500 (20")7055333864126M241647.39
Product Drawing
Size (mm) : 500 (20")
D1 (mm) : 705
D2 (mm) : 533
S1 (mm) : 38
PCD (mm) : 641
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 16
Weight (kg) : 47.39
18 BFS31616560560 (22")7605904469930M271660.5
Product Drawing
Size (mm) : 560 (22")
D1 (mm) : 760
D2 (mm) : 590
S1 (mm) : 44
PCD (mm) : 699
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 16
Weight (kg) : 60.5
19 BFS31616630630 (24")8256454875630M271668.41
Product Drawing
Size (mm) : 630 (24")
D1 (mm) : 825
D2 (mm) : 645
S1 (mm) : 48
PCD (mm) : 756
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 16
Weight (kg) : 68.41
20 BFS31616710710 (28")9107405684530M272088.28
Product Drawing
Size (mm) : 710 (28")
D1 (mm) : 910
D2 (mm) : 740
S1 (mm) : 56
PCD (mm) : 845
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 20
Weight (kg) : 88.28
21 BFS31616800800 (32")10608435698436M3320138.59
Product Drawing
Size (mm) : 800 (32")
D1 (mm) : 1060
D2 (mm) : 843
S1 (mm) : 56
PCD (mm) : 984
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 20
Weight (kg) : 138.59
22 BFS31616900900 (36")117594766109236M3324182.33
Product Drawing
Size (mm) : 900 (36")
D1 (mm) : 1175
D2 (mm) : 947
S1 (mm) : 66
PCD (mm) : 1092
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 24
Weight (kg) : 182.33
23 BFS3161610001000 (40")1255105066117536M3324192.8
Product Drawing
Size (mm) : 1000 (40")
D1 (mm) : 1255
D2 (mm) : 1050
S1 (mm) : 66
PCD (mm) : 1175
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 24
Weight (kg) : 192.8
Custom Option

Backing Rings - S/S 316 - ANSI 150 - PN16

Show full data

Variants: 28

#CodeSize (mm)D1 (mm)D2 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 BFS316A02020 (1/2")9032860.5161/2"40.3
Product Drawing
Size (mm) : 20 (1/2")
D1 (mm) : 90
D2 (mm) : 32
S1 (mm) : 8
PCD (mm) : 60.5
n-Ød (mm) : 16
Bolt Size : 1/2"
No Bolts : 4
Weight (kg) : 0.3
2 BFS316A02525 (3/4")9837870161/2"40.36
Product Drawing
Size (mm) : 25 (3/4")
D1 (mm) : 98
D2 (mm) : 37
S1 (mm) : 8
PCD (mm) : 70
n-Ød (mm) : 16
Bolt Size : 1/2"
No Bolts : 4
Weight (kg) : 0.36
3 BFS316A03232 (1")10844879.5161/2"40.43
Product Drawing
Size (mm) : 32 (1")
D1 (mm) : 108
D2 (mm) : 44
S1 (mm) : 8
PCD (mm) : 79.5
n-Ød (mm) : 16
Bolt Size : 1/2"
No Bolts : 4
Weight (kg) : 0.43
4 BFS316A04040 (1 1/4")11752889161/2"40.49
Product Drawing
Size (mm) : 40 (1 1/4")
D1 (mm) : 117
D2 (mm) : 52
S1 (mm) : 8
PCD (mm) : 89
n-Ød (mm) : 16
Bolt Size : 1/2"
No Bolts : 4
Weight (kg) : 0.49
5 BFS316A05050 (1 1/2")127621098.5161/2"40.69
Product Drawing
Size (mm) : 50 (1 1/2")
D1 (mm) : 127
D2 (mm) : 62
S1 (mm) : 10
PCD (mm) : 98.5
n-Ød (mm) : 16
Bolt Size : 1/2"
No Bolts : 4
Weight (kg) : 0.69
6 BFS316A06363 (2")1527810120.5205/8"40.95
Product Drawing
Size (mm) : 63 (2")
D1 (mm) : 152
D2 (mm) : 78
S1 (mm) : 10
PCD (mm) : 120.5
n-Ød (mm) : 20
Bolt Size : 5/8"
No Bolts : 4
Weight (kg) : 0.95
7 BFS316A07575 (2 1/2")1789210139.5205/8"41.33
Product Drawing
Size (mm) : 75 (2 1/2")
D1 (mm) : 178
D2 (mm) : 92
S1 (mm) : 10
PCD (mm) : 139.5
n-Ød (mm) : 20
Bolt Size : 5/8"
No Bolts : 4
Weight (kg) : 1.33
8 BFS316A09090 (3")19110812152205/8"41.72
Product Drawing
Size (mm) : 90 (3")
D1 (mm) : 191
D2 (mm) : 108
S1 (mm) : 12
PCD (mm) : 152
n-Ød (mm) : 20
Bolt Size : 5/8"
No Bolts : 4
Weight (kg) : 1.72
9 BFS316A110110 (4")22912812190.5205/8"82.43
Product Drawing
Size (mm) : 110 (4")
D1 (mm) : 229
D2 (mm) : 128
S1 (mm) : 12
PCD (mm) : 190.5
n-Ød (mm) : 20
Bolt Size : 5/8"
No Bolts : 8
Weight (kg) : 2.43
10 BFS316A125125 (5")25413516216233/4"84.02
Product Drawing
Size (mm) : 125 (5")
D1 (mm) : 254
D2 (mm) : 135
S1 (mm) : 16
PCD (mm) : 216
n-Ød (mm) : 23
Bolt Size : 3/4"
No Bolts : 8
Weight (kg) : 4.02
11 BFS316A140140 (5")25415816216233/4"83.49
Product Drawing
Size (mm) : 140 (5")
D1 (mm) : 254
D2 (mm) : 158
S1 (mm) : 16
PCD (mm) : 216
n-Ød (mm) : 23
Bolt Size : 3/4"
No Bolts : 8
Weight (kg) : 3.49
12 BFS316A160160 (6")27917816241233/4"84.14
Product Drawing
Size (mm) : 160 (6")
D1 (mm) : 279
D2 (mm) : 178
S1 (mm) : 16
PCD (mm) : 241
n-Ød (mm) : 23
Bolt Size : 3/4"
No Bolts : 8
Weight (kg) : 4.14
13 BFS316A180180 (6")27919516241233/4"83.51
Product Drawing
Size (mm) : 180 (6")
D1 (mm) : 279
D2 (mm) : 195
S1 (mm) : 16
PCD (mm) : 241
n-Ød (mm) : 23
Bolt Size : 3/4"
No Bolts : 8
Weight (kg) : 3.51
14 BFS316A200200 (8")34323520298.5233/4"87.18
Product Drawing
Size (mm) : 200 (8")
D1 (mm) : 343
D2 (mm) : 235
S1 (mm) : 20
PCD (mm) : 298.5
n-Ød (mm) : 23
Bolt Size : 3/4"
No Bolts : 8
Weight (kg) : 7.18
15 BFS316A225225 (8")34324020298.5233/4"86.89
Product Drawing
Size (mm) : 225 (8")
D1 (mm) : 343
D2 (mm) : 240
S1 (mm) : 20
PCD (mm) : 298.5
n-Ød (mm) : 23
Bolt Size : 3/4"
No Bolts : 8
Weight (kg) : 6.89
16 BFS316A250250 (10")40629020362267/8"128.96
Product Drawing
Size (mm) : 250 (10")
D1 (mm) : 406
D2 (mm) : 290
S1 (mm) : 20
PCD (mm) : 362
n-Ød (mm) : 26
Bolt Size : 7/8"
No Bolts : 12
Weight (kg) : 8.96
17 BFS316A280280 (10")40630020362267/8"128.23
Product Drawing
Size (mm) : 280 (10")
D1 (mm) : 406
D2 (mm) : 300
S1 (mm) : 20
PCD (mm) : 362
n-Ød (mm) : 26
Bolt Size : 7/8"
No Bolts : 12
Weight (kg) : 8.23
18 BFS316A315315 (12")48334525432267/8"1216.37
Product Drawing
Size (mm) : 315 (12")
D1 (mm) : 483
D2 (mm) : 345
S1 (mm) : 25
PCD (mm) : 432
n-Ød (mm) : 26
Bolt Size : 7/8"
No Bolts : 12
Weight (kg) : 16.37
19 BFS316A355355 (14")53537628476291"1223.28
Product Drawing
Size (mm) : 355 (14")
D1 (mm) : 535
D2 (mm) : 376
S1 (mm) : 28
PCD (mm) : 476
n-Ød (mm) : 29
Bolt Size : 1"
No Bolts : 12
Weight (kg) : 23.28
20 BFS316A400400 (16")60043032540291"1631.91
Product Drawing
Size (mm) : 400 (16")
D1 (mm) : 600
D2 (mm) : 430
S1 (mm) : 32
PCD (mm) : 540
n-Ød (mm) : 29
Bolt Size : 1"
No Bolts : 16
Weight (kg) : 31.91
21 BFS316A450450 (18")63548032578321 1/8"1634.75
Product Drawing
Size (mm) : 450 (18")
D1 (mm) : 635
D2 (mm) : 480
S1 (mm) : 32
PCD (mm) : 578
n-Ød (mm) : 32
Bolt Size : 1 1/8"
No Bolts : 16
Weight (kg) : 34.75
22 BFS316A500500 (20")70053338635321 1/8"2045.76
Product Drawing
Size (mm) : 500 (20")
D1 (mm) : 700
D2 (mm) : 533
S1 (mm) : 38
PCD (mm) : 635
n-Ød (mm) : 32
Bolt Size : 1 1/8"
No Bolts : 20
Weight (kg) : 45.76
23 BFS316A560560 (22")75059044692351 1/4"2053.9
Product Drawing
Size (mm) : 560 (22")
D1 (mm) : 750
D2 (mm) : 590
S1 (mm) : 44
PCD (mm) : 692
n-Ød (mm) : 35
Bolt Size : 1 1/4"
No Bolts : 20
Weight (kg) : 53.9
24 BFS316A630630 (24")81366048749351 1/4"2061.97
Product Drawing
Size (mm) : 630 (24")
D1 (mm) : 813
D2 (mm) : 660
S1 (mm) : 48
PCD (mm) : 749
n-Ød (mm) : 35
Bolt Size : 1 1/4"
No Bolts : 20
Weight (kg) : 61.97
25 BFS316A710710 (28")92774571863.5351 1/4"2883.43
Product Drawing
Size (mm) : 710 (28")
D1 (mm) : 927
D2 (mm) : 745
S1 (mm) : 71
PCD (mm) : 863.5
n-Ød (mm) : 35
Bolt Size : 1 1/4"
No Bolts : 28
Weight (kg) : 83.43
26 BFS316A800800 (32")106083581978411 1/2"28117.21
Product Drawing
Size (mm) : 800 (32")
D1 (mm) : 1060
D2 (mm) : 835
S1 (mm) : 81
PCD (mm) : 978
n-Ød (mm) : 41
Bolt Size : 1 1/2"
No Bolts : 28
Weight (kg) : 117.21
27 BFS316A900900 (36")1170950901085.8411 1/2"32237.09
Product Drawing
Size (mm) : 900 (36")
D1 (mm) : 1170
D2 (mm) : 950
S1 (mm) : 90
PCD (mm) : 1085.8
n-Ød (mm) : 41
Bolt Size : 1 1/2"
No Bolts : 32
Weight (kg) : 237.09
28 BFS316A10001000 (40")12901030901124411 1/2"36301.84
Product Drawing
Size (mm) : 1000 (40")
D1 (mm) : 1290
D2 (mm) : 1030
S1 (mm) : 90
PCD (mm) : 1124
n-Ød (mm) : 41
Bolt Size : 1 1/2"
No Bolts : 36
Weight (kg) : 301.84
Custom Option

Backing Rings - S/S 316 - Table D/E

Show full data

Variants: 8

#CodeSize (mm)D1 (mm)D2 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 BFS316D/E02020 (1/2")953286714M1240.36
Product Drawing
Size (mm) : 20 (1/2")
D1 (mm) : 95
D2 (mm) : 32
S1 (mm) : 8
PCD (mm) : 67
n-Ød (mm) : 14
Bolt Size : M12
No Bolts : 4
Weight (kg) : 0.36
2 BFS316D/E02525 (3/4")1003787314M1240.39
Product Drawing
Size (mm) : 25 (3/4")
D1 (mm) : 100
D2 (mm) : 37
S1 (mm) : 8
PCD (mm) : 73
n-Ød (mm) : 14
Bolt Size : M12
No Bolts : 4
Weight (kg) : 0.39
3 BFS316D/E03232 (1")1154488314M1240.52
Product Drawing
Size (mm) : 32 (1")
D1 (mm) : 115
D2 (mm) : 44
S1 (mm) : 8
PCD (mm) : 83
n-Ød (mm) : 14
Bolt Size : M12
No Bolts : 4
Weight (kg) : 0.52
4 BFS316D/E04040 (1 1/4")1205288714M1240.54
Product Drawing
Size (mm) : 40 (1 1/4")
D1 (mm) : 120
D2 (mm) : 52
S1 (mm) : 8
PCD (mm) : 87
n-Ød (mm) : 14
Bolt Size : M12
No Bolts : 4
Weight (kg) : 0.54
5 BFS316D/E05050 (1 1/2")1356299814M1240.76
Product Drawing
Size (mm) : 50 (1 1/2")
D1 (mm) : 135
D2 (mm) : 62
S1 (mm) : 9
PCD (mm) : 98
n-Ød (mm) : 14
Bolt Size : M12
No Bolts : 4
Weight (kg) : 0.76
6 BFS316D/E06363 (2")150781011418M1640.93
Product Drawing
Size (mm) : 63 (2")
D1 (mm) : 150
D2 (mm) : 78
S1 (mm) : 10
PCD (mm) : 114
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 0.93
7 BFS316D/E07575 (2 1/2")165921012718M1641.08
Product Drawing
Size (mm) : 75 (2 1/2")
D1 (mm) : 165
D2 (mm) : 92
S1 (mm) : 10
PCD (mm) : 127
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.08
8 BFS316D/E09090 (3")1851081214618M1641.58
Product Drawing
Size (mm) : 90 (3")
D1 (mm) : 185
D2 (mm) : 108
S1 (mm) : 12
PCD (mm) : 146
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.58
Custom Option

Backing Rings - S/S 316 - Table D

Show full data

Variants: 20

#CodeSize (mm)D1 (mm)D2 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 BFS316D110110 (4")2151281017818M1641.76
Product Drawing
Size (mm) : 110 (4")
D1 (mm) : 215
D2 (mm) : 128
S1 (mm) : 10
PCD (mm) : 178
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 4
Weight (kg) : 1.76
2 BFS316D125125 (5")2551351321018M1681.57
Product Drawing
Size (mm) : 125 (5")
D1 (mm) : 255
D2 (mm) : 135
S1 (mm) : 13
PCD (mm) : 210
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 1.57
3 BFS316D140140 (5")2551581321018M1683.01
Product Drawing
Size (mm) : 140 (5")
D1 (mm) : 255
D2 (mm) : 158
S1 (mm) : 13
PCD (mm) : 210
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 3.01
4 BFS316D160160 (6")2801781323518M1683.54
Product Drawing
Size (mm) : 160 (6")
D1 (mm) : 280
D2 (mm) : 178
S1 (mm) : 13
PCD (mm) : 235
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 3.54
5 BFS316D180180 (6")2801951323518M1683.03
Product Drawing
Size (mm) : 180 (6")
D1 (mm) : 280
D2 (mm) : 195
S1 (mm) : 13
PCD (mm) : 235
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 3.03
6 BFS316D200200 (8")3352351329218M1684.36
Product Drawing
Size (mm) : 200 (8")
D1 (mm) : 335
D2 (mm) : 235
S1 (mm) : 13
PCD (mm) : 292
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 4.36
7 BFS316D225225 (8")3352401329218M1684.17
Product Drawing
Size (mm) : 225 (8")
D1 (mm) : 335
D2 (mm) : 240
S1 (mm) : 13
PCD (mm) : 292
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 4.17
8 BFS316D250250 (10")4052901635622M2087.51
Product Drawing
Size (mm) : 250 (10")
D1 (mm) : 405
D2 (mm) : 290
S1 (mm) : 16
PCD (mm) : 356
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 7.51
9 BFS316D280280 (10")4053001635622M2086.93
Product Drawing
Size (mm) : 280 (10")
D1 (mm) : 405
D2 (mm) : 300
S1 (mm) : 16
PCD (mm) : 356
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 6.93
10 BFS316D315315 (12")4553451940622M20129.64
Product Drawing
Size (mm) : 315 (12")
D1 (mm) : 455
D2 (mm) : 345
S1 (mm) : 19
PCD (mm) : 406
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 12
Weight (kg) : 9.64
11 BFS316D355355 (14")5253752247026M241217.12
Product Drawing
Size (mm) : 355 (14")
D1 (mm) : 525
D2 (mm) : 375
S1 (mm) : 22
PCD (mm) : 470
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 17.12
12 BFS316D400400 (16")5804302252126M241219.46
Product Drawing
Size (mm) : 400 (16")
D1 (mm) : 580
D2 (mm) : 430
S1 (mm) : 22
PCD (mm) : 521
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 19.46
13 BFS316D450450 (18")6404802558426M241226.39
Product Drawing
Size (mm) : 450 (18")
D1 (mm) : 640
D2 (mm) : 480
S1 (mm) : 25
PCD (mm) : 584
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 26.39
14 BFS316D500500 (20")7055332964126M241636.17
Product Drawing
Size (mm) : 500 (20")
D1 (mm) : 705
D2 (mm) : 533
S1 (mm) : 29
PCD (mm) : 641
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 16
Weight (kg) : 36.17
15 BFS316D560560 (22")7605903269930M271642.47
Product Drawing
Size (mm) : 560 (22")
D1 (mm) : 760
D2 (mm) : 590
S1 (mm) : 32
PCD (mm) : 699
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 16
Weight (kg) : 42.47
16 BFS316D630630 (24")8256603275630M271645.53
Product Drawing
Size (mm) : 630 (24")
D1 (mm) : 825
D2 (mm) : 660
S1 (mm) : 32
PCD (mm) : 756
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 16
Weight (kg) : 45.53
17 BFS316D710710 (28")9107453584530M272055.08
Product Drawing
Size (mm) : 710 (28")
D1 (mm) : 910
D2 (mm) : 745
S1 (mm) : 35
PCD (mm) : 845
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 20
Weight (kg) : 55.08
18 BFS316D800800 (32")10608354198536M3320101.3
Product Drawing
Size (mm) : 800 (32")
D1 (mm) : 1060
D2 (mm) : 835
S1 (mm) : 41
PCD (mm) : 985
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 20
Weight (kg) : 101.3
19 BFS316D900900 (36")117598448109236M3324132.6
Product Drawing
Size (mm) : 900 (36")
D1 (mm) : 1175
D2 (mm) : 984
S1 (mm) : 48
PCD (mm) : 1092
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 24
Weight (kg) : 132.6
20 BFS316D10001000 (40")1255103551117536M3324148.98
Product Drawing
Size (mm) : 1000 (40")
D1 (mm) : 1255
D2 (mm) : 1035
S1 (mm) : 51
PCD (mm) : 1175
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 24
Weight (kg) : 148.98
Custom Option

Backing Rings - S/S 316 - Table E

Show full data

Variants: 20

#CodeSize (mm)D1 (mm)D2 (mm)S1 (mm)PCD (mm)n-Ød (mm)Bolt SizeNo BoltsWeight (kg)
1 BFS316E110110 (4")2151281317818M1682.19
Product Drawing
Size (mm) : 110 (4")
D1 (mm) : 215
D2 (mm) : 128
S1 (mm) : 13
PCD (mm) : 178
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 2.19
2 BFS316E125125 (5")2551351421018M1683.7
Product Drawing
Size (mm) : 125 (5")
D1 (mm) : 255
D2 (mm) : 135
S1 (mm) : 14
PCD (mm) : 210
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 3.7
3 BFS316E140140 (5")2551581421018M1683.23
Product Drawing
Size (mm) : 140 (5")
D1 (mm) : 255
D2 (mm) : 158
S1 (mm) : 14
PCD (mm) : 210
n-Ød (mm) : 18
Bolt Size : M16
No Bolts : 8
Weight (kg) : 3.23
4 BFS316E160160 (6")2801781723522M2084.49
Product Drawing
Size (mm) : 160 (6")
D1 (mm) : 280
D2 (mm) : 178
S1 (mm) : 17
PCD (mm) : 235
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 4.49
5 BFS316E180180 (6")2801951723522M2083.84
Product Drawing
Size (mm) : 180 (6")
D1 (mm) : 280
D2 (mm) : 195
S1 (mm) : 17
PCD (mm) : 235
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 3.84
6 BFS316E200200 (8")3352351929222M2086.23
Product Drawing
Size (mm) : 200 (8")
D1 (mm) : 335
D2 (mm) : 235
S1 (mm) : 19
PCD (mm) : 292
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 6.23
7 BFS316E225225 (8")3352401929222M2085.95
Product Drawing
Size (mm) : 225 (8")
D1 (mm) : 335
D2 (mm) : 240
S1 (mm) : 19
PCD (mm) : 292
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 8
Weight (kg) : 5.95
8 BFS316E250250 (10")4052902235622M201210.06
Product Drawing
Size (mm) : 250 (10")
D1 (mm) : 405
D2 (mm) : 290
S1 (mm) : 22
PCD (mm) : 356
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 12
Weight (kg) : 10.06
9 BFS316E280280 (10")4053002235622M20129.26
Product Drawing
Size (mm) : 280 (10")
D1 (mm) : 405
D2 (mm) : 300
S1 (mm) : 22
PCD (mm) : 356
n-Ød (mm) : 22
Bolt Size : M20
No Bolts : 12
Weight (kg) : 9.26
10 BFS316E315315 (12")4553452540626M241212.32
Product Drawing
Size (mm) : 315 (12")
D1 (mm) : 455
D2 (mm) : 345
S1 (mm) : 25
PCD (mm) : 406
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 12.32
11 BFS316E355355 (14")5253762947026M241222.57
Product Drawing
Size (mm) : 355 (14")
D1 (mm) : 525
D2 (mm) : 376
S1 (mm) : 29
PCD (mm) : 470
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 22.57
12 BFS316E400400 (16")5804303252126M241228.31
Product Drawing
Size (mm) : 400 (16")
D1 (mm) : 580
D2 (mm) : 430
S1 (mm) : 32
PCD (mm) : 521
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 12
Weight (kg) : 28.31
13 BFS316E450450 (18")6404803258426M241633.25
Product Drawing
Size (mm) : 450 (18")
D1 (mm) : 640
D2 (mm) : 480
S1 (mm) : 32
PCD (mm) : 584
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 16
Weight (kg) : 33.25
14 BFS316E500500 (20")7055333864126M241647.39
Product Drawing
Size (mm) : 500 (20")
D1 (mm) : 705
D2 (mm) : 533
S1 (mm) : 38
PCD (mm) : 641
n-Ød (mm) : 26
Bolt Size : M24
No Bolts : 16
Weight (kg) : 47.39
15 BFS316E560560 (22")7605904469930M271658.4
Product Drawing
Size (mm) : 560 (22")
D1 (mm) : 760
D2 (mm) : 590
S1 (mm) : 44
PCD (mm) : 699
n-Ød (mm) : 30
Bolt Size : M27
No Bolts : 16
Weight (kg) : 58.4
16 BFS316E630630 (24")8256604875633M301667.36
Product Drawing
Size (mm) : 630 (24")
D1 (mm) : 825
D2 (mm) : 660
S1 (mm) : 48
PCD (mm) : 756
n-Ød (mm) : 33
Bolt Size : M30
No Bolts : 16
Weight (kg) : 67.36
17 BFS316E710710 (28")9107455184533M302079.07
Product Drawing
Size (mm) : 710 (28")
D1 (mm) : 910
D2 (mm) : 745
S1 (mm) : 51
PCD (mm) : 845
n-Ød (mm) : 33
Bolt Size : M30
No Bolts : 20
Weight (kg) : 79.07
18 BFS316E800800 (32")10608355498436M3320133.42
Product Drawing
Size (mm) : 800 (32")
D1 (mm) : 1060
D2 (mm) : 835
S1 (mm) : 54
PCD (mm) : 984
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 20
Weight (kg) : 133.42
19 BFS316E900900 (36")117595064109236M3324176.81
Product Drawing
Size (mm) : 900 (36")
D1 (mm) : 1175
D2 (mm) : 950
S1 (mm) : 64
PCD (mm) : 1092
n-Ød (mm) : 36
Bolt Size : M33
No Bolts : 24
Weight (kg) : 176.81
20 BFS316E10001000 (40")1255103567117539M3624192.49
Product Drawing
Size (mm) : 1000 (40")
D1 (mm) : 1255
D2 (mm) : 1035
S1 (mm) : 67
PCD (mm) : 1175
n-Ød (mm) : 39
Bolt Size : M36
No Bolts : 24
Weight (kg) : 192.49
Global Water Group (GWG)
  • Together, We Move Water. Global Water Group (GWG) is a leading Australian supplier and solutions provider in the fluid movement and water services industry, with over 40 years experience supporting projects across mining, civil, agriculture, aquaculture and associated sectors.
Sitemap
Locations
Contact GWG

© 2026 Global Water Group (GWG). All rights reserved.
