DUCTILE IRON TAPPING SADDLE

  • Ductile iron GGG50 Body
  • Fusion bonded epoxy coating to Australian requirements
  • Threaded BSPT outlets
  • 16 Bar working pressures
  • EDPM Seals
  • Stainless Steel Bolts, nuts and washers
DUCTILE IRON TAPPING SADDLE

DUCTILE IRON TAPPING SADDLE - PN16

Show full data

Variants: 45

#CodeSize (mm)D (Inch)L (mm)A (mm)A1 (mm)F (mm)T(mm)Bolt Size
1 TSD050X03/4503/4"80844811418M10 x 35

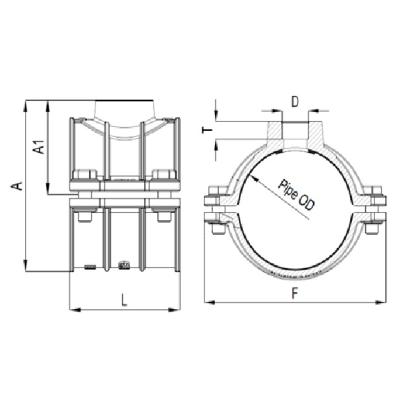

Product Drawing
Size (mm) : 50
D (Inch) : 3/4"
L (mm) : 80
A (mm) : 84
A1 (mm) : 48
F (mm) : 114
T(mm) : 18
Bolt Size : M10 x 35
2 TSD050X1501"80844811418M10 x 35
Product Drawing
Size (mm) : 50
D (Inch) : 1"
L (mm) : 80
A (mm) : 84
A1 (mm) : 48
F (mm) : 114
T(mm) : 18
Bolt Size : M10 x 35
3 TSD063X03/4633/4"90975412718M10 x 35
Product Drawing
Size (mm) : 63
D (Inch) : 3/4"
L (mm) : 90
A (mm) : 97
A1 (mm) : 54
F (mm) : 127
T(mm) : 18
Bolt Size : M10 x 35
4 TSD063X1631"90975412718M10 x 35
Product Drawing
Size (mm) : 63
D (Inch) : 1"
L (mm) : 90
A (mm) : 97
A1 (mm) : 54
F (mm) : 127
T(mm) : 18
Bolt Size : M10 x 35
5 TSD063X11/4631 1/4"90975412718M10 x 35
Product Drawing
Size (mm) : 63
D (Inch) : 1 1/4"
L (mm) : 90
A (mm) : 97
A1 (mm) : 54
F (mm) : 127
T(mm) : 18
Bolt Size : M10 x 35
6 TSD063X11/2631 1/2"90975412718M10 x 35
Product Drawing
Size (mm) : 63
D (Inch) : 1 1/2"
L (mm) : 90
A (mm) : 97
A1 (mm) : 54
F (mm) : 127
T(mm) : 18
Bolt Size : M10 x 35
7 TSD063X2632"90975412718M10 x 35
Product Drawing
Size (mm) : 63
D (Inch) : 2"
L (mm) : 90
A (mm) : 97
A1 (mm) : 54
F (mm) : 127
T(mm) : 18
Bolt Size : M10 x 35
8 TSD075X03/4753/4"1001106114418M10 x 35
Product Drawing
Size (mm) : 75
D (Inch) : 3/4"
L (mm) : 100
A (mm) : 110
A1 (mm) : 61
F (mm) : 144
T(mm) : 18
Bolt Size : M10 x 35
9 TSD075X1751"1001106114418M10 x 35
Product Drawing
Size (mm) : 75
D (Inch) : 1"
L (mm) : 100
A (mm) : 110
A1 (mm) : 61
F (mm) : 144
T(mm) : 18
Bolt Size : M10 x 35
10 TSD075X11/4751 1/4"1001106114418M10 x 35
Product Drawing
Size (mm) : 75
D (Inch) : 1 1/4"
L (mm) : 100
A (mm) : 110
A1 (mm) : 61
F (mm) : 144
T(mm) : 18
Bolt Size : M10 x 35
11 TSD075X11/2751 1/2"1001106114418M10 x 35
Product Drawing
Size (mm) : 75
D (Inch) : 1 1/2"
L (mm) : 100
A (mm) : 110
A1 (mm) : 61
F (mm) : 144
T(mm) : 18
Bolt Size : M10 x 35
12 TSD075X2752"1001106114418M10 x 35
Product Drawing
Size (mm) : 75
D (Inch) : 2"
L (mm) : 100
A (mm) : 110
A1 (mm) : 61
F (mm) : 144
T(mm) : 18
Bolt Size : M10 x 35
13 TSD090X03/4903/4"1001247015620M10 x 35
Product Drawing
Size (mm) : 90
D (Inch) : 3/4"
L (mm) : 100
A (mm) : 124
A1 (mm) : 70
F (mm) : 156
T(mm) : 20
Bolt Size : M10 x 35
14 TSD090X1901"1001247015620M10 x 35
Product Drawing
Size (mm) : 90
D (Inch) : 1"
L (mm) : 100
A (mm) : 124
A1 (mm) : 70
F (mm) : 156
T(mm) : 20
Bolt Size : M10 x 35
15 TSD090X11/4901 1/4"1001247015620M10 x 35
Product Drawing
Size (mm) : 90
D (Inch) : 1 1/4"
L (mm) : 100
A (mm) : 124
A1 (mm) : 70
F (mm) : 156
T(mm) : 20
Bolt Size : M10 x 35
16 TSD090X11/2901 1/2"1001247015620M10 x 35
Product Drawing
Size (mm) : 90
D (Inch) : 1 1/2"
L (mm) : 100
A (mm) : 124
A1 (mm) : 70
F (mm) : 156
T(mm) : 20
Bolt Size : M10 x 35
17 TSD090X2902"1001247015620M10 x 35
Product Drawing
Size (mm) : 90
D (Inch) : 2"
L (mm) : 100
A (mm) : 124
A1 (mm) : 70
F (mm) : 156
T(mm) : 20
Bolt Size : M10 x 35
18 TSD110X03/41103/4"1101448017820M10 x 35
Product Drawing
Size (mm) : 110
D (Inch) : 3/4"
L (mm) : 110
A (mm) : 144
A1 (mm) : 80
F (mm) : 178
T(mm) : 20
Bolt Size : M10 x 35
19 TSD110X11101"1101448017820M10 x 35
Product Drawing
Size (mm) : 110
D (Inch) : 1"
L (mm) : 110
A (mm) : 144
A1 (mm) : 80
F (mm) : 178
T(mm) : 20
Bolt Size : M10 x 35
20 TSD110X11/41101 1/4"1101448017820M10 x 35
Product Drawing
Size (mm) : 110
D (Inch) : 1 1/4"
L (mm) : 110
A (mm) : 144
A1 (mm) : 80
F (mm) : 178
T(mm) : 20
Bolt Size : M10 x 35
21 TSD110X21102"1101448017820M10 x 35
Product Drawing
Size (mm) : 110
D (Inch) : 2"
L (mm) : 110
A (mm) : 144
A1 (mm) : 80
F (mm) : 178
T(mm) : 20
Bolt Size : M10 x 35
22 TSD125X11251"1101609019720M12 x 35
Product Drawing
Size (mm) : 125
D (Inch) : 1"
L (mm) : 110
A (mm) : 160
A1 (mm) : 90
F (mm) : 197
T(mm) : 20
Bolt Size : M12 x 35
23 TSD125X11/21251 1/2"1101609019720M12 x 35
Product Drawing
Size (mm) : 125
D (Inch) : 1 1/2"
L (mm) : 110
A (mm) : 160
A1 (mm) : 90
F (mm) : 197
T(mm) : 20
Bolt Size : M12 x 35
24 TSD125X21252"1101609019720M12 x 35
Product Drawing
Size (mm) : 125
D (Inch) : 2"
L (mm) : 110
A (mm) : 160
A1 (mm) : 90
F (mm) : 197
T(mm) : 20
Bolt Size : M12 x 35
25 TSD140X11401"1101769721220M12 x 35
Product Drawing
Size (mm) : 140
D (Inch) : 1"
L (mm) : 110
A (mm) : 176
A1 (mm) : 97
F (mm) : 212
T(mm) : 20
Bolt Size : M12 x 35
26 TSD140X21402"1101769721220M12 x 35
Product Drawing
Size (mm) : 140
D (Inch) : 2"
L (mm) : 110
A (mm) : 176
A1 (mm) : 97
F (mm) : 212
T(mm) : 20
Bolt Size : M12 x 35
27 TSD160X11601"12519810923320M12 x 35
Product Drawing
Size (mm) : 160
D (Inch) : 1"
L (mm) : 125
A (mm) : 198
A1 (mm) : 109
F (mm) : 233
T(mm) : 20
Bolt Size : M12 x 35
28 TSD160X11/21601 1/2"12519810923320M12 x 35
Product Drawing
Size (mm) : 160
D (Inch) : 1 1/2"
L (mm) : 125
A (mm) : 198
A1 (mm) : 109
F (mm) : 233
T(mm) : 20
Bolt Size : M12 x 35
29 TSD160X21602"12519810923320M12 x 35
Product Drawing
Size (mm) : 160
D (Inch) : 2"
L (mm) : 125
A (mm) : 198
A1 (mm) : 109
F (mm) : 233
T(mm) : 20
Bolt Size : M12 x 35
30 TSD200X12001"14024013128220M14 x 40
Product Drawing
Size (mm) : 200
D (Inch) : 1"
L (mm) : 140
A (mm) : 240
A1 (mm) : 131
F (mm) : 282
T(mm) : 20
Bolt Size : M14 x 40
31 TSD200X11/22001 1/2"14024013128220M14 x 40
Product Drawing
Size (mm) : 200
D (Inch) : 1 1/2"
L (mm) : 140
A (mm) : 240
A1 (mm) : 131
F (mm) : 282
T(mm) : 20
Bolt Size : M14 x 40
32 TSD200X22002"14024013128220M14 x 40
Product Drawing
Size (mm) : 200
D (Inch) : 2"
L (mm) : 140
A (mm) : 240
A1 (mm) : 131
F (mm) : 282
T(mm) : 20
Bolt Size : M14 x 40
33 TSD200X32003"14024013128220M14 x 40
Product Drawing
Size (mm) : 200
D (Inch) : 3"
L (mm) : 140
A (mm) : 240
A1 (mm) : 131
F (mm) : 282
T(mm) : 20
Bolt Size : M14 x 40
34 TSD225X12251"12526614430720M14 x 40
Product Drawing
Size (mm) : 225
D (Inch) : 1"
L (mm) : 125
A (mm) : 266
A1 (mm) : 144
F (mm) : 307
T(mm) : 20
Bolt Size : M14 x 40
35 TSD225X11/22251 1/2"12526614430720M14 x 40
Product Drawing
Size (mm) : 225
D (Inch) : 1 1/2"
L (mm) : 125
A (mm) : 266
A1 (mm) : 144
F (mm) : 307
T(mm) : 20
Bolt Size : M14 x 40
36 TSD225X22252"12526614430720M14 x 40
Product Drawing
Size (mm) : 225
D (Inch) : 2"
L (mm) : 125
A (mm) : 266
A1 (mm) : 144
F (mm) : 307
T(mm) : 20
Bolt Size : M14 x 40
37 TSD225X32253"12526614430720M14 x 40
Product Drawing
Size (mm) : 225
D (Inch) : 3"
L (mm) : 125
A (mm) : 266
A1 (mm) : 144
F (mm) : 307
T(mm) : 20
Bolt Size : M14 x 40
38 TSD250X12501"14029115633420M14 x 40
Product Drawing
Size (mm) : 250
D (Inch) : 1"
L (mm) : 140
A (mm) : 291
A1 (mm) : 156
F (mm) : 334
T(mm) : 20
Bolt Size : M14 x 40
39 TSD250X11/22501 1/2"14029115633420M14 x 40
Product Drawing
Size (mm) : 250
D (Inch) : 1 1/2"
L (mm) : 140
A (mm) : 291
A1 (mm) : 156
F (mm) : 334
T(mm) : 20
Bolt Size : M14 x 40
40 TSD250X22502"14029115633420M14 x 40
Product Drawing
Size (mm) : 250
D (Inch) : 2"
L (mm) : 140
A (mm) : 291
A1 (mm) : 156
F (mm) : 334
T(mm) : 20
Bolt Size : M14 x 40
41 TSD250X32503"14029115633420M14 x 40
Product Drawing
Size (mm) : 250
D (Inch) : 3"
L (mm) : 140
A (mm) : 291
A1 (mm) : 156
F (mm) : 334
T(mm) : 20
Bolt Size : M14 x 40
42 TSD315X13151"14035618940020M14 x 40
Product Drawing
Size (mm) : 315
D (Inch) : 1"
L (mm) : 140
A (mm) : 356
A1 (mm) : 189
F (mm) : 400
T(mm) : 20
Bolt Size : M14 x 40
43 TSD315X11/23151 1/2"14035618940020M14 x 40
Product Drawing
Size (mm) : 315
D (Inch) : 1 1/2"
L (mm) : 140
A (mm) : 356
A1 (mm) : 189
F (mm) : 400
T(mm) : 20
Bolt Size : M14 x 40
44 TSD315X23152"14035618940020M14 x 40
Product Drawing
Size (mm) : 315
D (Inch) : 2"
L (mm) : 140
A (mm) : 356
A1 (mm) : 189
F (mm) : 400
T(mm) : 20
Bolt Size : M14 x 40
45 TSD315X33153"14035618940020M14 x 40
Product Drawing
Size (mm) : 315
D (Inch) : 3"
L (mm) : 140
A (mm) : 356
A1 (mm) : 189
F (mm) : 400
T(mm) : 20
Bolt Size : M14 x 40
